Flowmeter

Dwyer Instruments RMB-52 | Flowmeter | Range 5-50 SCFH air

Dwyer Instruments RMA-24-TMV | Flowmeter | Range 5-70 LPM air

Dwyer Instruments RMB-51-SSV | Flowmeter | Range 2-20 SCFH air

Dwyer Instruments RMA-24-SSV | Flowmeter | Range 5-70 LPM air

Dwyer Instruments RMB-51D-SSV | Flowmeter | Range 2-20 SCFH/1-9.5 LPM air

Dwyer Instruments RMA-23-TMV | Flowmeter | Range 5-50 LPM air

Dwyer Instruments RMB-51D | Flowmeter | Range 2-20 SCFH/1-9.5 LPM air

Dwyer Instruments RMA-23-SSV | Flowmeter | Range 5-50 LPM air

Dwyer Instruments RMB-51 | Flowmeter | Range 2-20 SCFH air

Dwyer Instruments RMA-1-SSV | Flowmeter | Range .05-.4 SCFH air

Dwyer Instruments RMB-49 | Flowmeter | Range .5-5 SCFH air ±5% accuracy

Dwyer Instruments RMA-151-TMV | Flowmeter | Range 5-50 cc/min air ± 8% accuracy

Dwyer Instruments RMA-9-TMV | Flowmeter | Range 15-150 SCFH air

Dwyer Instruments RMA-151-SSV | Flowmeter | Range 5-50 cc/min air ±8% accuracy

Dwyer Instruments RMA-9-SSV | Flowmeter | Range 15-150 SCFH air

Dwyer Instruments RMA-150-TMV | Flowmeter | Range 10-100 cc/min air ± 8% accuracy

Dwyer Instruments RMA-150-SSV | Flowmeter | Range 10-100 cc/min air ±8% accuracy

Dwyer Instruments RMA-9 | Flowmeter | Range 15-150 SCFH air | No valve

Dwyer Instruments RMA-8-TMV | Flowmeter | Range 10-100 SCFH air

Dwyer Instruments RMA-14-TMV | Flowmeter | Range 200-2500 cc/min air

Dwyer Instruments RMA-8-SSV | Flowmeter | Range 10-100 SCFH air

Dwyer Instruments RMA-14-SSV | Flowmeter | Range 200-2500 cc/min air

Dwyer Instruments RMA-8 | Flowmeter | Range 10-100 SCFH air | No valve

Dwyer Instruments RMA-13-TMV | Flowmeter | Range 100-1000 cc/min air

Dwyer Instruments RMA-7-TMV | Flowmeter | Range 5-50 SCFH air

Dwyer Instruments RMA-13-SSV | Flowmeter | Range 100-1000 cc/min air

Dwyer Instruments RMA-12-TMV | Flowmeter | Range 50-500 cc/min air

Dwyer Instruments RMA-7-SSV | Flowmeter | Range 5-50 SCFH air

Dwyer Instruments RMA-7 | Flowmeter | Range 5-50 SCFH air | No valve

Dwyer Instruments RMA-12-SSV | Flowmeter | Range 50-500 cc/min air

Dwyer Instruments RMA-6-TMV | Flowmeter | Range 2-20 SCFH air

Dwyer Instruments RMA-11-TMV | Flowmeter | Range 30-200 cc/min air

Dwyer Instruments RMA-6-SSV | Flowmeter | Range 2-20 SCFH air

Dwyer Instruments RMA-11-SSV | Flowmeter | Range 30-200 cc/min air

Dwyer Instruments RMA-6 | Flowmeter | Range 2-20 SCFH air | No valve

Dwyer Instruments RMA-10-TMV | Flowmeter | Range 20-200 SCFH air

Dwyer Instruments RMA-10-SSV | Flowmeter | Range 20-200 SCFH air

Dwyer Instruments RMA-34 | Flowmeter | Range 20-300 cc/min water | No valve

Dwyer Instruments RMA-33 | Flowmeter | Range 10-110 cc/min water | No valve

Dwyer Instruments RMA-32 | Flowmeter | Range 5-50 cc/min water | No valve

Dwyer Instruments RMA-3 | Flowmeter | Range.2-2 SCFH air | No valve

Dwyer Instruments RMA-26 | Flowmeter | Range .5-5 LPM air | No valve

Dwyer Instruments RMA-25 | Flowmeter | Range 10-100 LPM air | No valve

Dwyer Instruments RMA-24 | Flowmeter | Range 5-70 LPM air | No valve

Dwyer Instruments RMA-23 | Flowmeter | Range 5-50 LPM air | No valve

Dwyer Instruments RMA-22 | Flowmeter | Range 2-25 LPM air | No valve

Dwyer Instruments RMA-22-TMV | Flowmeter | Range 2-25 LPM air

Dwyer Instruments RMB-50-SSV | Flowmeter | Range 1-10 SCFH air

Dwyer Instruments RMA-22-SSV | Flowmeter | Range 2-25 LPM air

Dwyer Instruments RMB-50D-SSV | Flowmeter | Range 1.2-10 SCFH/0.6-5 LPM air

Dwyer Instruments RMA-21-TMV | Flowmeter | Range 1-10 LPM air

Dwyer Instruments RMB-50D | Flowmeter | Range 1.2-10 SCFH/0.6-5 LPM air

Dwyer Instruments RMA-21-SSV | Flowmeter | Range 1-10 LPM air

Dwyer Instruments RMB-50 | Flowmeter | Range 1-10 SCFH air

Dwyer Instruments RMA-1-TMV | Flowmeter | Range .05-.4 SCFH air

Dwyer Instruments RMB-49-SSV | Flowmeter | Range .5-5 SCFH air ±5% accuracy

Dwyer Instruments RMA-21 | Flowmeter | Range 1-10 LPM air | No valve

Dwyer Instruments RMA-2 | Flowmeter | Range .1-1 SCFH air | No valve

Dwyer Instruments RMA-151 | Flowmeter | Range 5-50 cc/min air | No valve. ±8% accuracy

Dwyer Instruments RMA-150 | Flowmeter | Range 10-100 cc/min air | No valve. ±8% accuracy

Dwyer Instruments RMA-14 | Flowmeter | Range 200-2500 cc/min air | No valve

Dwyer Instruments RMA-13 | Flowmeter | Range 100-1000 cc/min air | No valve

Dwyer Instruments RMA-12 | Flowmeter | Range 50-500 cc/min air | No valve

Dwyer Instruments RMA-11 | Flowmeter | Range 30-200 cc/min air | No valve

Dwyer Instruments RMA-10 | Flowmeter | Range 20-200 SCFH air | No valve

Dwyer Instruments RMA-1 | Flowmeter | Range .05-.4 SCFH air | No valve

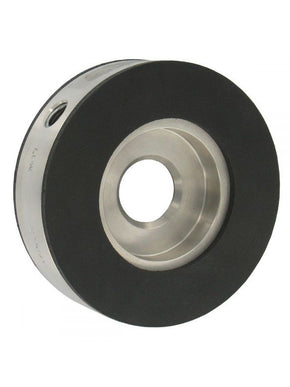

Dwyer Instruments OP-A-1 | Orifice plate flowmeter | 0.5" line size | 0.200" bore | 0.32 Beta | Water capacity: 20" d.p. W/C | 0.62 GPM flow; air capacity: 2.35 SCFM @ 14.7 psia | 3.63 SCFM @ 20 psig | 6.61 SCFM @ 100 psig; 1 lb

Dwyer Instruments OP-A-2 | Orifice plate flowmeter | 0.5" line size | 0.310" bore | 0.50 Beta | Water capacity: 100" d.p. W/C | 3.44 GPM flow; air capacity: 100" d.p. W/C | 12.21 SCFM @ 14.7 psia | 19.58 SCFM @ 20 psig | 36.37 SCFM @ 100 psig; 1 lb

Dwyer Instruments OP-Q-1 | Orifice plate flowmeter | 16" line size | 4.500" bore | 0.30 Beta | Water capacity: 20" d.p. W/C | 308.76 GPM flow; air capacity: 20" d.p. W/C | 1172.63 SCFM @ 14.7 psia | 1817.05 SCFM @ 20 psig | 3321.32 SCFM @ 100 psig; 48 lb

Dwyer Instruments OP-P-1 | Orifice plate flowmeter | 14" line size | 4.000" bore | 0.30 Beta | Water capacity: 20" d.p. W/C | 244.14 GPM flow; air capacity: 20" d.p. W/C | 927.14 SCFM @ 14.7 psia | 1436.59 SCFM @ 20 psig | 2625.81 SCFM @ 100 psig; 40 lb

Dwyer Instruments OP-O-2 | Orifice plate flowmeter | 12" line size | 6.000" bore | 0.50 Beta | Water capacity: 100" d.p. W/C | 1271.62 GPM flow; air capacity: 100" d.p. W/C | 4530 SCFM @ 14.7 psia | 7288.16 SCFM @ 20 psig | 13570.33 SCFM @ 100 psig; 30 lb

Dwyer Instruments OP-M-2 | Orifice plate flowmeter | 8" line size | 4.000" bore | 0.50 Beta | Water capacity: 100" d.p. W/C | 565.77 GPM flow; air capacity: 100" d.p. W/C | 2014.95 SCFM @ 14.7 psia | 3241.45 SCFM @ 20 psig | 6034.85 SCFM @ 100 psig; 14 lb

Dwyer Instruments OP-M-1 | Orifice plate flowmeter | 8" line size | 2.400" bore | 0.30 Beta | Water capacity: 20" d.p. W/C | 87.95 GPM flow; air capacity: 20" d.p. W/C | 333.87 SCFM @ 14.7 psia | 517.25 SCFM @ 20 psig | 945.28 SCFM @ 100 psig; 14 lb

Dwyer Instruments OP-G-3 | Orifice plate flowmeter | 2.5" line size | 1.750" bore | 0.70 Beta | Water capacity: 320" d.p. W/C | 216.30 GPM flow; air capacity: 200" d.p. W/C | 543.99 SCFM @ 14.7 psia | 936.56 SCFM @ 20 psig | 1798.86 SCFM @ 100 psig; 4 lb

Dwyer Instruments OP-G-2 | Orifice plate flowmeter | 2.5" line size | 1.250" bore | 0.50 Beta | Water capacity: 100" d.p. W/C | 55.54 GPM flow; air capacity: 100" d.p. W/C | 197.54 SCFM @ 14.7 psia | 317.58 SCFM @ 20 psig | 590.91 SCFM @ 100 psig; 4 lb

Dwyer Instruments OP-G-1 | Orifice plate flowmeter | 2.5" line size | 0.750" bore | 0.30 Beta | Water capacity: 20" d.p. W/C | 8.63 GPM flow; air capacity: 20" d.p. W/C | 32.71 SCFM @ 14.7 psia | 50.64 SCFM @ 20 psig | 92.48 SCFM @ 100 psig; 4 lb

Dwyer Instruments OP-F-3 | Orifice plate flowmeter | 2" line size | 1.450" bore | 0.70 Beta | Water capacity: 320" d.p. W/C | 147.74 GPM flow; air capacity: 200" d.p. W/C | 372.09 SCFM @ 14.7 psia | 639.87 SCFM @ 20 psig | 1227.63 SCFM @ 100 psig; 3 lb

Dwyer Instruments OP-F-2 | Orifice plate flowmeter | 2" line size | 1.000" bore | 0.48 Beta | Water capacity: 100" d.p. W/C | 35.34 GPM flow; air capacity: 100" d.p. W/C | 125.74 SCFM @ 14.7 psia | 202.03 SCFM @ 20 psig | 375.8 SCFM @ 100 psig; 3 lb

Dwyer Instruments OP-F-1 | Orifice plate flowmeter | 2" line size | 0.600" bore | 0.29 Beta | Water capacity: 20" d.p. W/C | 5.52 GPM flow; air capacity: 20" d.p. W/C | 20.92 SCFM @ 14.7 psia | 32.38 SCFM @ 20 psig | 59.13 SCFM @ 100 psig; 3 lb

Dwyer Instruments OP-E-3 | Orifice plate flowmeter | 1.5" line size | 1.100" bore | 0.68 Beta | Water capacity: 320" d.p. W/C | 83.95 GPM flow; air capacity: 200" d.p. W/C | 212.18 SCFM @ 14.7 psia | 363.93 SCFM @ 20 psig | 697.39 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-E-2 | Orifice plate flowmeter | 1.5" line size | 0.800" bore | 0.50 Beta | Water capacity: 100" d.p. W/C | 22.73 GPM flow; air capacity: 100" d.p. W/C | 80.82 SCFM @ 14.7 psia | 129.68 SCFM @ 20 psig | 251.5 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-E-1 | Orifice plate flowmeter | 1.5" line size | 0.500" bore | 0.31 Beta | Water capacity: 20" d.p. W/C | 3.85 GPM flow; air capacity: 20" d.p. W/C | 14.57 SCFM @ 14.7 psia | 22.55 SCFM @ 20 psig | 41.16 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-D-3 | Orifice plate flowmeter | 1.25" line size | 1.00" bore | 0.72 Beta | Water capacity: 320" d.p. W/C | 71.77 GPM flow; air capacity: 200" d.p. W/C | 180 SCFM @ 14.7 psia | 309.97 SCFM @ 20 psig | 595.2 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-D-2 | Orifice plate flowmeter | 1.25" line size | 0.700" bore | 0.51 Beta | Water capacity: 100" d.p. W/C | 17.48 GPM flow; air capacity: 100" d.p. W/C | 62.09 SCFM @ 14.7 psia | 99.75 SCFM @ 20 psig | 185.5 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-D-1 | Orifice plate flowmeter | 1.25" line size | 0.400" bore | 0.29 Beta | Water capacity: 20" d.p. W/C | 2.46 GPM flow; air capacity: 20" d.p. W/C | 9.31 SCFM @ 14.7 psia | 14.41 SCFM @ 20 psig | 26.3 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-L-2 | Orifice plate flowmeter | 6" line size | 3.000" bore | 0.49 Beta | Water capacity: 100" d.p. W/C | 317.74 GPM flow; air capacity: 100" d.p. W/C | 1331.63 SCFM @ 14.7 psia | 1820.05 SCFM @ 20 psig | 3387.93 SCFM @ 100 psig; 10 lb

Dwyer Instruments OP-C-3 | Orifice plate flowmeter | 1" line size | 0.720" bore | 0.69 Beta | Water capacity: 320" d.p. W/C | 36.15 GPM flow; air capacity: 200" d.p. W/C | 91.28 SCFM @ 14.7 psia | 156.51 SCFM @ 20 psig | 300 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-C-2 | Orifice plate flowmeter | 1" line size | 0.520" bore | 0.49 Beta | Water capacity: 100" d.p. W/C | 9.63 GPM flow; air capacity: 100" d.p. W/C | 34.2 SCFM @ 14.7 psia | 54.92 SCFM @ 20 psig | 102.09 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-L-1 | Orifice plate flowmeter | 6" line size | 1.800" bore | 0.30 Beta | Water capacity: 20" d.p. W/C | 49.46 GPM flow; air capacity: 20" d.p. W/C | 187.86 SCFM @ 14.7 psia | 291 SCFM @ 20 psig | 531.75 SCFM @ 100 psig; 10 lb

Dwyer Instruments OP-C-1 | Orifice plate flowmeter | 1" line size | 0.300" bore | 0.29 Beta | Water capacity: 20" d.p. W/C | 1.38 GPM flow; air capacity: 20" d.p. W/C | 5.24 SCFM @ 14.7 psia | 8.11 SCFM @ 20 psig | 14.8 SCFM @ 100 psig; 2 lb

Dwyer Instruments OP-B-3 | Orifice plate flowmeter | 0.75" line size | 0.580" bore | 0.70 Beta | Water capacity: 320" d.p. W/C | 23.82 GPM flow; air capacity: 200" d.p. W/C | 59.92 SCFM @ 14.7 psia | 102.91 SCFM @ 20 psig | 197.2 SCFM @ 100 psig; 1 lb

Dwyer Instruments OP-K-3 | Orifice plate flowmeter | 5" line size | 3.500" bore | 0.69 Beta | Water capacity: 320" d.p. W/C | 853.09 GPM flow; air capacity: 200" d.p. W/C | 2152.83 SCFM @ 14.7 psia | 3701.57 SCFM @ 20 psig | 7103.22 SCFM @ 100 psig; 8 lb
