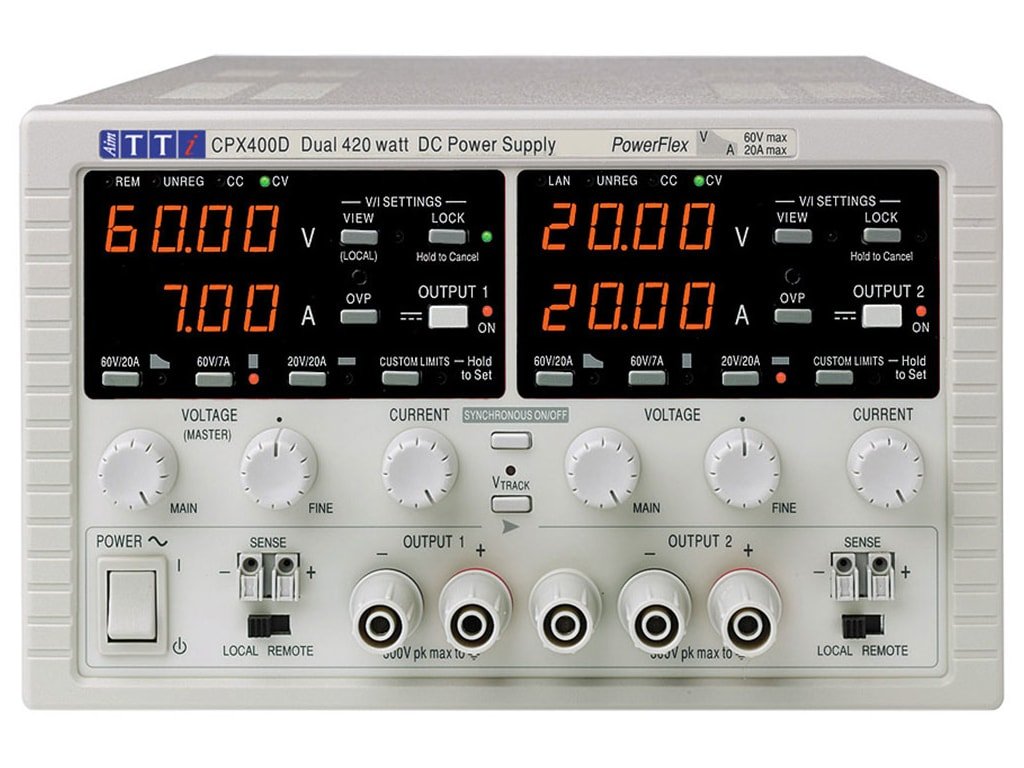

Aim TTi CPX400D | PowerFlex DC Power Supply
One of Aim-most TTi's popular product lines is the CPX Series of laboratory DC power supply. There are tens of thousands of CPX models in use worldwide. They can deliver larger currents at lower voltages thanks to PowerFlex control, allowing them to adjust the power to fit a wider range of applications. With a total power range of 360 watts to 840 watts, the line consists of single and dual output variants.

Free UAE shipping available
- Specifications
- Features
- Downloads
Current range | 0A to 20A |
Display | Dual 4-digit meters, 10mm (0·39�) LED |
Input voltage | 110 to 240 volts +/-10% 50/60Hz. Installation Category II |
Operating Temperature | +5oC to +40oC, 20% to 80% RH |
Power | Up to 420W subject to power envelope |
Storage Temperature | -40oC to + 70oC |
Voltage | 0V to 60V |
Isolated voltage tracking for versatility
DC output switches and "view limits" buttons
True Analog controls - for ease of use
Synchronous switching of both outputs
S-Lock function - instantly lock settings
PowerFlex regulation - for maximum flexibility
Two fully independent outputs
Variable OVP and OCP trips
Low noise and good transient response
Compact design uses less bench/rack space
