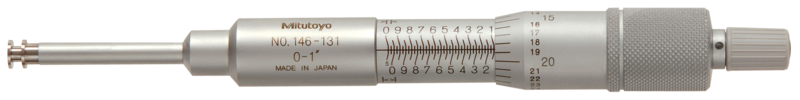

Mitutoyo 146-131 Groove Micrometer, Rotating Spindle 0-1", 0,25" Flange
This Internal Groove Micrometer is designed to measure the width and location of grooves cut into bore walls.
It offers the following features:
- Two-directional ratchet stop.
- Non-rotating spindle models are also available.
- Specifications
- Features
- Downloads
Analog/Digital | Analog |
Delivered | Including box, key |
Graduation | 0.001" |
Inch-Metric | Inch |
Mass (main unit) | 135 g |
Measuring spindle | Spindle pitch 0.635 mm |
Measuring surfaces | Hardened |
Range Inside | 0.055 |
Range Outside | 0-1" |
Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
This Internal Groove Micrometer is designed to measure the width and location of grooves cut into bore walls.
It offers the following features:
- Two-directional ratchet stop.
- Non-rotating spindle models are also available.
