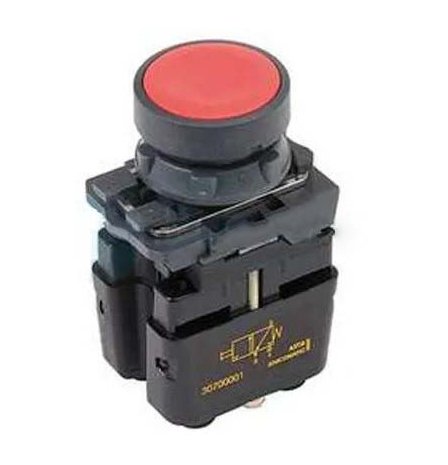

ASCO 30701012 | Push Button Valve | Series 307 | Type NO/NC | Size 4mm
The microvalve ASCO Joucomatic product 30701012 is made up of one or two pneumatic modules, an operating head, an adaptor, and an intermediate subbase. The following function combinations are supported by these modules: NC, NO, NC+NC, NO+NO, and NC+NO. modification of plastic or metal buttons made to the highest standards of quality. firmly and securely attaching the button to the microvalve.
- Specifications
- Features
- Downloads
| Actuation | Push Button |
| Ambiant temperature | -5 - 60 °C |
| Flow Coefficient | 112 l/min |
| Functions | 3/2 Normally Closed |
| Material | Zinc |
| Operating pressure | 0 - 8 bar(Air) |
| Orifice | 2 mm |
| Port Type | Push-in 4 |
| Series | 307 |
| Temperature | Fluid: -5 - 60 °C |
| Type | Push Button Valve |
| Weight | 0.09 Kg |
- Part Number: ASCO 30701012
- Series: 307
- Valve Type: Push Button
- Function Type: Normally Open (NO) / Normally Closed (NC)
- Size: 4mm
- Application: Suitable for a variety of industrial automation and control systems
- Design: Easy manual operation with push button control for reliable switching
- Purpose: Used for controlling the flow of air or gas in pneumatic systems
