ASCO E222D002SCA2, Solenoid Valve , 2 port(s) , NC, 24 V ac, 1/2in

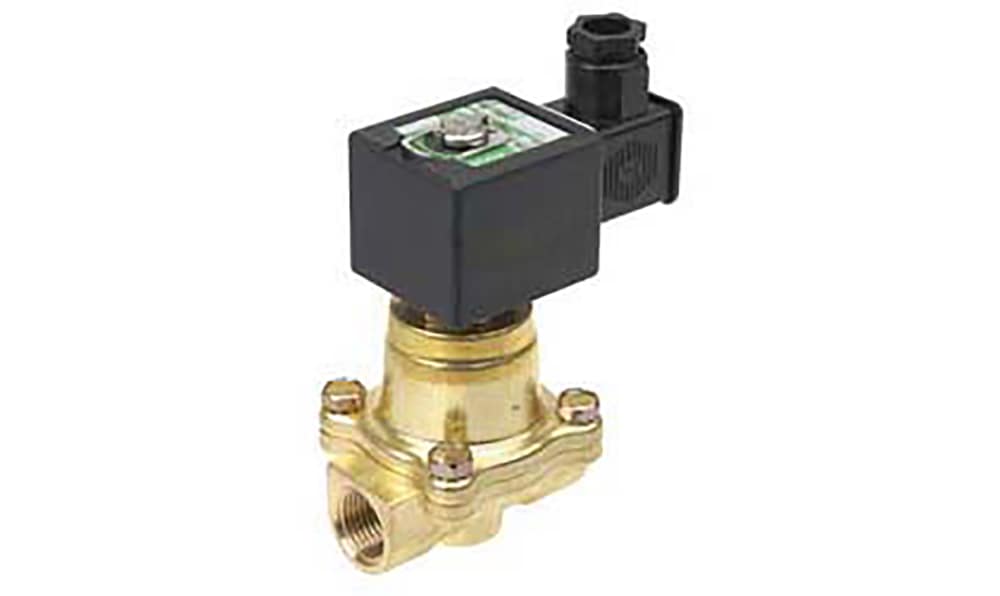

Name: ASCO E222D002SCA2, Solenoid Valve , 2 port(s) , NC, 24 V ac, 1/2in
Brand: Asco
SKU: E222D002SCA2
Availability: OutOfStock

Part Number : E222D002SCA2

Availability: Sold out

Detailed Description
Specifications

Two Way, N/C Steam Valves

Two-way, pilot operated solenoid valves for hot water/steam applications, normally closed with threaded port connection.

Brass body
Compact design to minimize heat radiation loss
DIN plug connection
Ranging from -20 to +184°C
Can be mounted in any position

Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.

Brand	Asco
Supply Voltage	24 V ac
Number of Ports	2
Connection Size	1/2in
Connection	1/2 in Rp Female
Operation	Pilot
Default Valve Position	NC
Suitable Applications	Hot Water, Steam
Type	2/2
Orifice Diameter	16mm
Series	222
Body Material	Brass
Maximum Working Pressure	9 bar
Operating Temperature Range	-20 → +40 °C
Minimum Operating Temperature	-20°C
Thread Standard or Connection Type	Rp
Maximum Operating Temperature	+40°C
Connection Gender	Female
Maximum Closing Time	100ms
Flow Factor Kv	3.3m³/h
Maximum Opening Time	100ms
