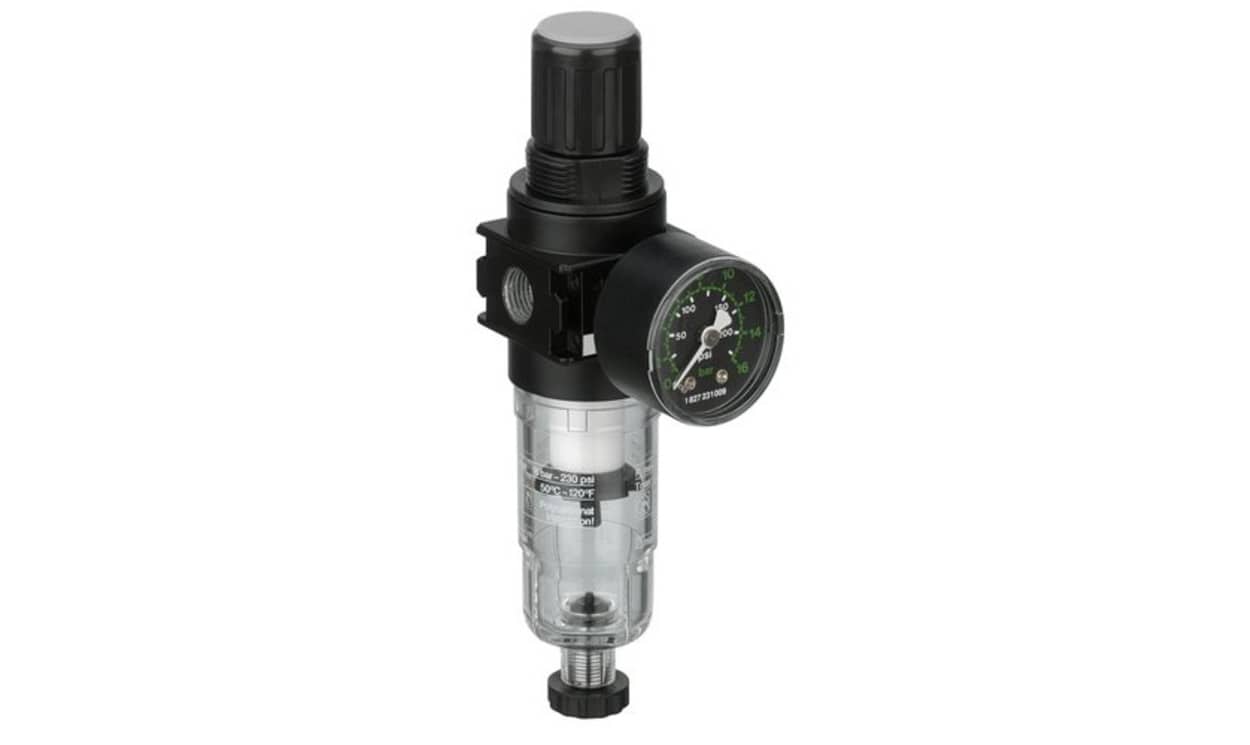

AVENTICS 0821300756 | NL1-FRE Filter Regulator | 5 µm, G 1/4, Semi-Automatic Drain

Name: AVENTICS 0821300756 | NL1-FRE Filter Regulator | 5 µm, G 1/4, Semi-Automatic Drain
Brand: Aventics
SKU: 0821300756
Availability: InStock

Part Number : 0821300756

With a G 1/4 port, 5 µm filtration and a semi-automatic drain, the AVENTICS 0821300756 is a filter regulator from the NL1-FRE series. Maximum operating pressure for this G 1/4 version with semi-automatic drain is 16 bar (minimum 1.5 bar), and the ambient and process temperature range of -10 °C to +60 °C is stated.

Filtration size: 5 µm
Port connection: G 1/4
Drain type: semi-automatic
Operating pressure: 1.5 bar to 16 bar
Ambient and process temperature: -10 °C to +60 °C

Availability: low stock

Detailed Description
Specifications

Aventics Filter Regulator

The Aventics 5μm pneumatic filter regulator has a G 1/4in port connection and a maximum operating pressure of 16bar. The regulator has a die-cast zinc housing, an ABS seal and a polyethylene filter insert. It is installed vertically with a single pressure supply.

Features and Benefits

Lockable regulator head
Maximum particle count at the outlet is 5 mg/m³
Operating temperature ranging between -10°C and 60°C
Pressure dew point must be at least 15°C under ambient and medium temperature and may not exceed 3°C
Relieving air exhaust
Semi-automatic drain

Certifications

ATEX certified
ISO 8573-4

Brand	AVENTICS
Port Connection	G 1/4
Maximum Operating Pressure	16 bar
Manufacturer Series	NL1-FRE
Drain Type	Semi Automatic
Filtration Size	5µm
Port Connection Thread Size	1/4 in
Maximum Ambient Operating Temperature	+60°C
Minimum Process Operating Temperature	-10°C
Minimum Operating Pressure	1.5bar
Minimum Ambient Operating Temperature	-10°C
Port Connection Thread Standard	G
Ambient Operating Temperature Range	-10 → +60°C
Process Operating Temperature Range	-10 → +60°C
Maximum Process Operating Temperature	+60°C
