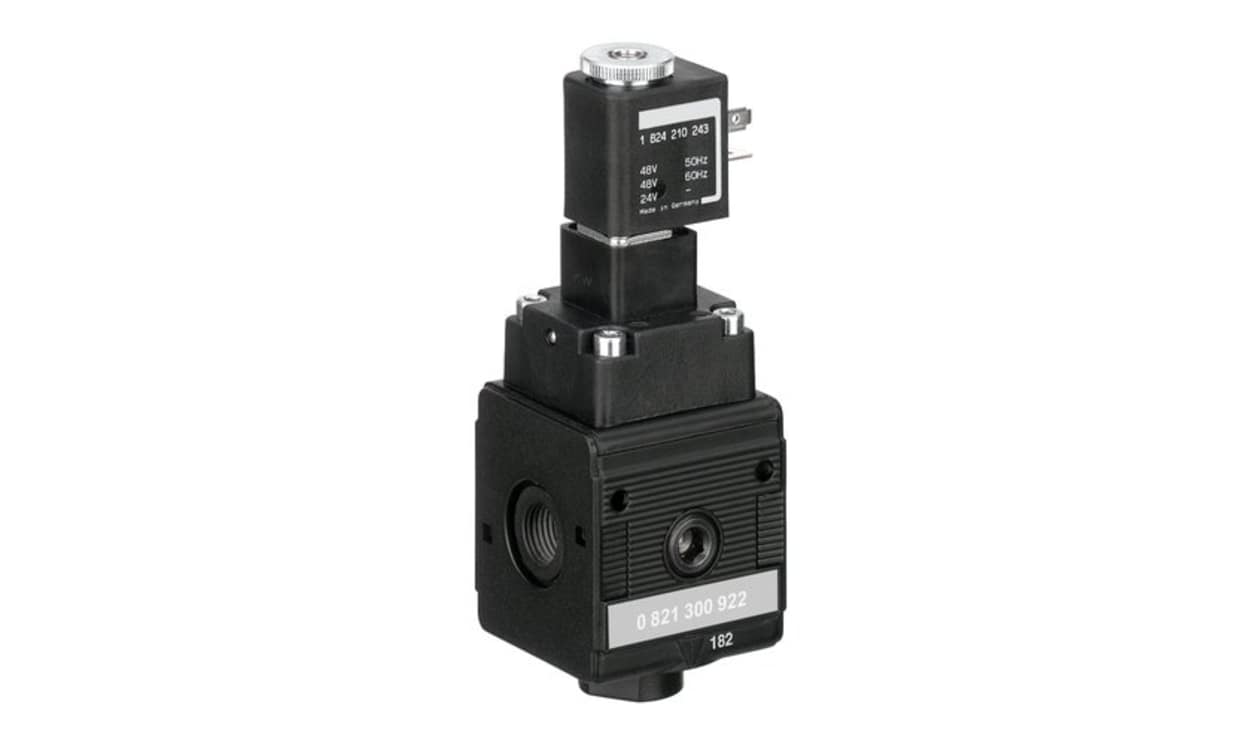

AVENTICS 0821300932 3/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/2 NL4-SOV Series 24V dc

Name: AVENTICS 0821300932 3/2 Pneumatic Solenoid Valve - Pilot/Spring G 1/2 NL4-SOV Series 24V dc
Brand: Aventics
SKU: 0821300932
Availability: OutOfStock

Part Number : 0821300932

Availability: Sold out

Detailed Description
Specifications

NL Series 3/2 Shut-Off Valve Solenoid Operated

Form B Electrical connector ISO 6952
Temperature Range -10 → +60 °C
Maximum particle size 5μm
Protection class IP65 (with Plug)
Duty cycle 100%

NL Series FRL

The NL range of air preparation units may be used as single elements or in combination units using joining accessories

Brand	AVENTICS
Function	3/2
Connection Port Thread	G 1/2
Actuation Type	Pilot/Spring
Manufacturer Series	NL4-SOV
Solenoid Voltage	24V dc
Solenoid Fitted	Yes
Number of Ports	3/2
Body Material	Die Cast Zinc
Maximum Flow Rate	4000L/min
Solenoid Power Consumption	4.8W
Minimum Operating Pressure	2.5bar
Thread Size	1/2in
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+60°C
Maximum Operating Pressure	10bar
Thread Standard	G
