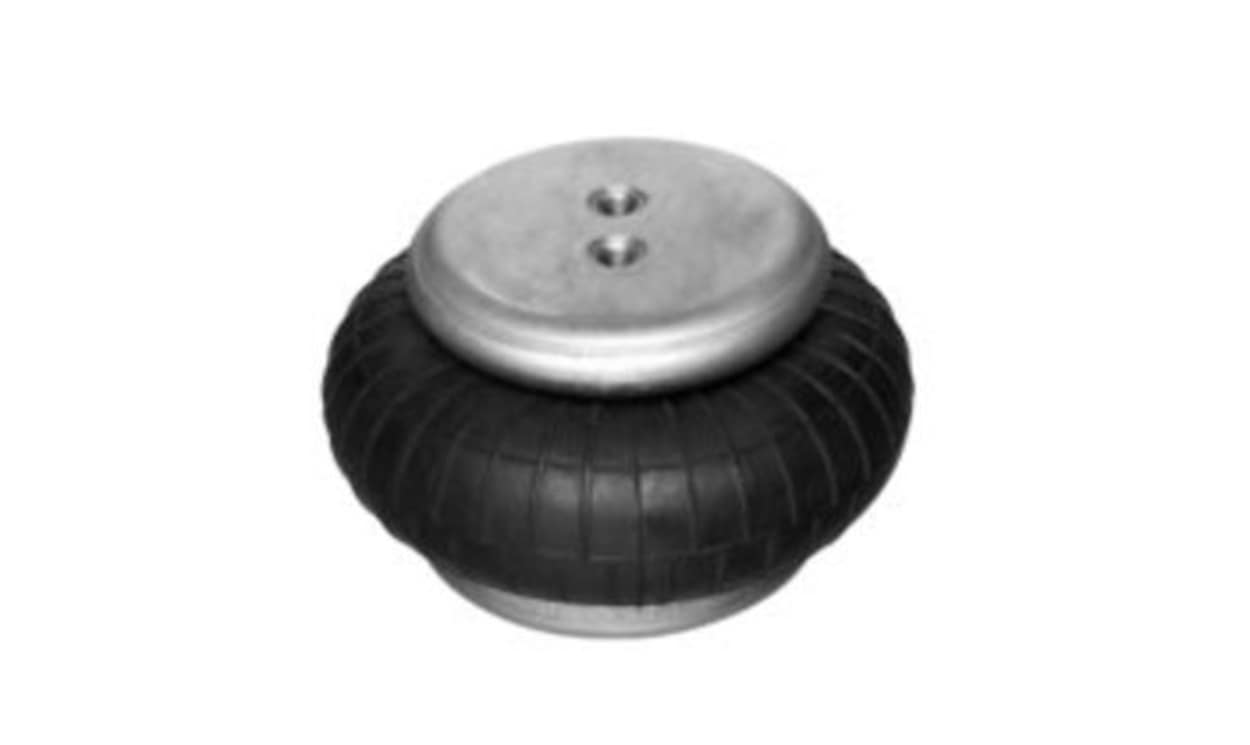

AVENTICS 1933091000 | BCP Compact Air Bellows | 228 mm Dia, 89 mm Stroke, G 3/4

Name: AVENTICS 1933091000 | BCP Compact Air Bellows | 228 mm Dia, 89 mm Stroke, G 3/4
Brand: Aventics
SKU: 1933091000
Availability: InStock

Part Number : 1933091000

Offering a 89 mm stroke, this BCP compact air bellows (AVENTICS 1933091000) has a 228 mm nominal diameter and fits an installation height of 51 to 140 mm. It is rated to 8 bar maximum and weighs 3.9 kg.

Stroke: 89 mm
Nominal diameter: 228 mm
Installation height: 51 to 140 mm
Port connection: G 3/4
Maximum operating pressure: 8 bar
Weight: 3.9 kg

Availability: low stock

Detailed Description
Specifications
Downloads

The Aventics Bellow Actuator, designed as part of the Series BCP, is engineered for precision and adaptability in industrial applications. With its robust design featuring permanently crimped connecting plates, it is capable of withstanding high forces in constrained spaces. The actuator's single-acting principle allows for safe retraction without pressure, making it an ideal choice for various operational environments. Not only does it boast a high level of temperature and corrosion resistance, but it has also been tested for safety at pressures up to 24 bar, ensuring reliable performance under demanding conditions.

Constructed with materials that enhance durability against environmental wear
Optimised for use in industrial settings ensuring high operational standards
Designed to support a wide range of ambient temperatures for versatile application
Specifications allow easy integration into existing compressed air systems

Brand	AVENTICS
Manufacturer Series	BCP
Nominal Diameter	228mm
Stroke	89mm
Installation Height Minimum	51mm
Installation Height Maximum	140mm
Port Connection	G 3/4
Maximum Operating Pressure	8 bar
Weight	3.9kg
