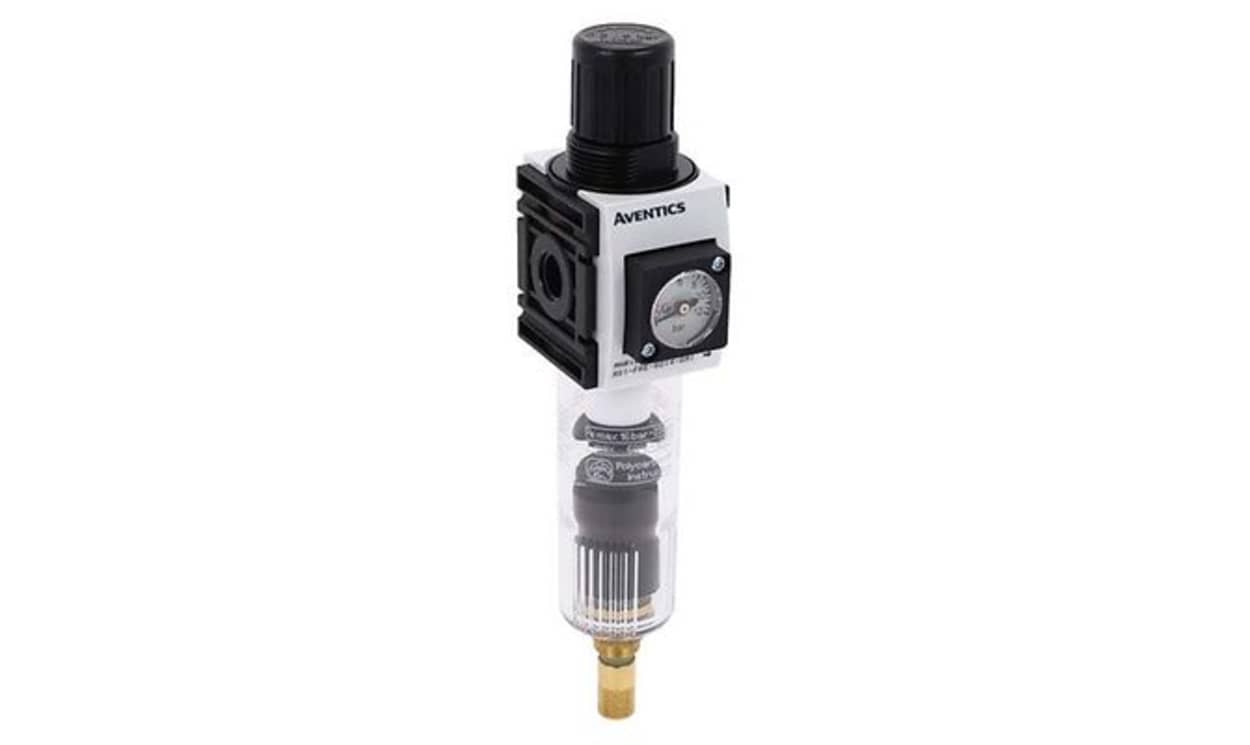

AVENTICS R412014656 | AS1 Filter Regulator | 5 µm, G 1/4, Automatic Drain

Name: AVENTICS R412014656 | AS1 Filter Regulator | 5 µm, G 1/4, Automatic Drain
Brand: Aventics
SKU: R412014656
Availability: InStock

Part Number : R412014656

AVENTICS R412014656 is an AS1 filter regulator with a G 1/4 port connection, 5 µm filtration and an automatic drain. It is rated for an operating pressure of 1.5 bar to 12 bar.

Port connection: G 1/4
Filtration size: 5 µm
Drain: automatic
Operating pressure: 1.5 bar to 12 bar
Ambient temperature: -10 °C to +50 °C
Series: AS1

Availability: low stock

Detailed Description
Specifications

The Aventics Pressure regulator Series AS1-RGS DS is a modular versatile maintenance unit designed for universal applications. This Series features compact dimensions and is highly efficient lightweight and easy to use. The Aventics Series AS ensures reliability safety and efficiency with simplified assembly and maintenance efforts.

Working pressure Minimum 1.5 bar
Working pressure max 12 bar
Minimum ambient temperature -10 °C
Maximum ambient temperature 50 °C

Brand	AVENTICS
Port Connection	G 1/4
Maximum Operating Pressure	12 bar
Manufacturer Series	AS1
Drain Type	Automatic
Filtration Size	5µm
Maximum Ambient Operating Temperature	+50°C
Minimum Operating Pressure	1.5bar
Ambient Operating Temperature Range	-10 → 50°C
Model Number	R412014656
Minimum Ambient Operating Temperature	-10°C
