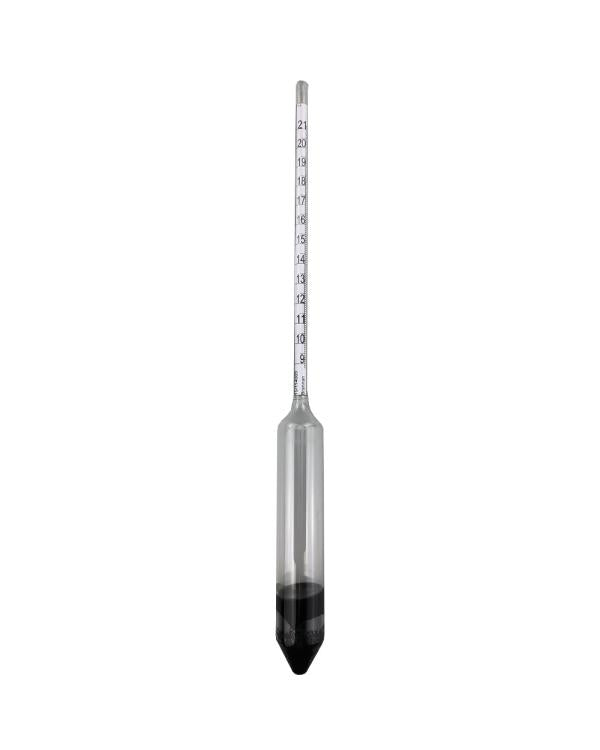

Brannan 09/002/0 | ASTM E 100 Hydrometer 2H, Low Surface Tension | 9 to 21 API, 0.1 Division
Brannan 09/002/0 is the ASTM 2H hydrometer, reading 9 to 21 API on the API gravity scale in 0.1 divisions. It belongs to Brannan's ASTMH001 family of ASTM E 100 hydrometers for petroleum products and other liquids of low surface tension, made in the UK from soda glass with steel shot ballast, 330 mm long with a 26 mm bulb.
Key features
- Adjusted at 60 °F
- 330 mm overall length, 26 mm bulb diameter
- Made in UK

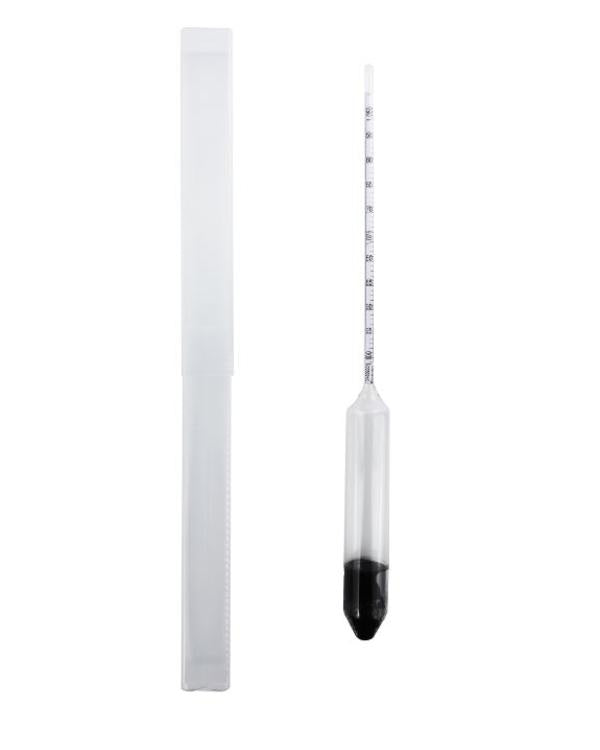

- Supplied in protective, resealable plastic tube
Brannan can supply this hydrometer with a UKAS or traceable calibration certificate.
- Specifications
- Downloads
| Part Number | 09/002/0 |
| Brand | Brannan |
| ASTM number | 2H |
| Scale | API |
| Range | 9 to 21 API |
| Division | 0.1 |
| Material | Soda glass, steel shot ballast, synthetic wax resin |
| Overall length | 330mm |
| Bulb diameter | 26mm |
| Approx weight | 100g (incl. 45g protective plastic tube) |
| Adjusted | 60°F, for petroleum products and other liquids of low surface tension |
