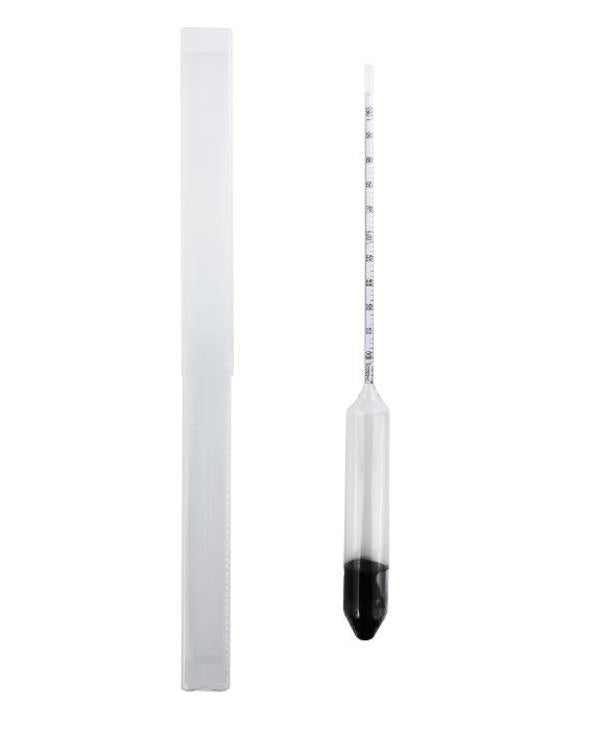

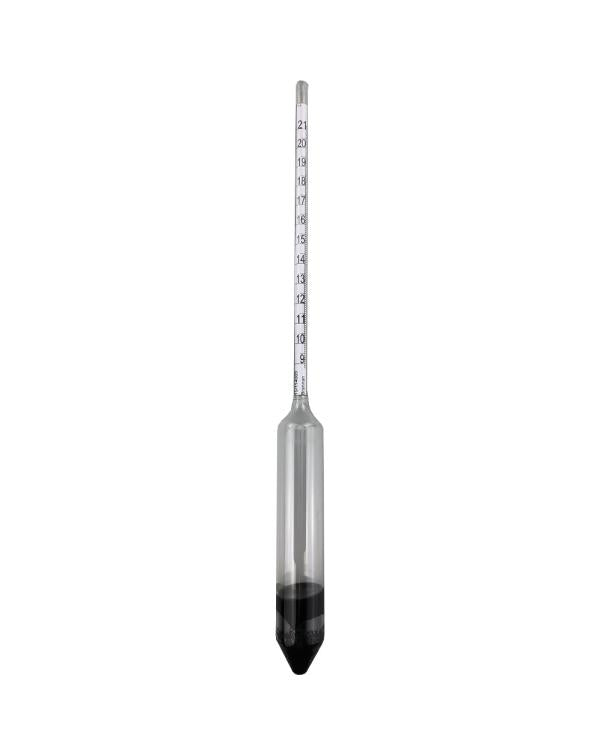

Brannan 09/316/0 | ASTM E100 Low Surface Tension Hydrometer | 316H-82, 850 to 900 kg/m³
Brannan 09/316/0 is the ASTM 316H-82 low surface tension hydrometer, reading density from 850 to 900 kg/m³ at 15 °C in 0.5 kg/m³ sub-divisions. ASTM Specification E 100 describes hydrometers using the API scale and others in specific gravity and density. This 330 mm soda glass instrument is made in the UK and is supplied in a protective, resealable plastic tube.
Key features
- Measures density in kg/m³ at a standard temperature of 15 °C
- Scale error at any point not to exceed 0.5 kg/m³
- 330 mm long, 26 mm bulb
- Supplied in protective, resealable plastic tube
- Made in UK
Each hydrometer can be supplied with UKAS certification, a certificate traceable to a recognised national standard, or a statement of conformity, if required.
- Specifications
- Downloads
| Part Number | 09/316/0 |
| Brand | Brannan |
| ASTM number | 316H-82 |
| Range | 850 to 900 kg/m3 |
| Division | 0.5 kg/m3 |
| Standard | ASTM E 100 |
| Standard temp | 15°C |
| Scale error at any point not to exceed | 0.5kg/m3 |
| Length of nominal scale | 125mm to 145mm |
| Overall length | 325mm - 335mm |
| Bulb diameter | 26mm |
| Material | Soda glass, steel shot ballast, synthetic wax resin |
| Approx weight | 100g (incl. 45g protective plastic tube) |
