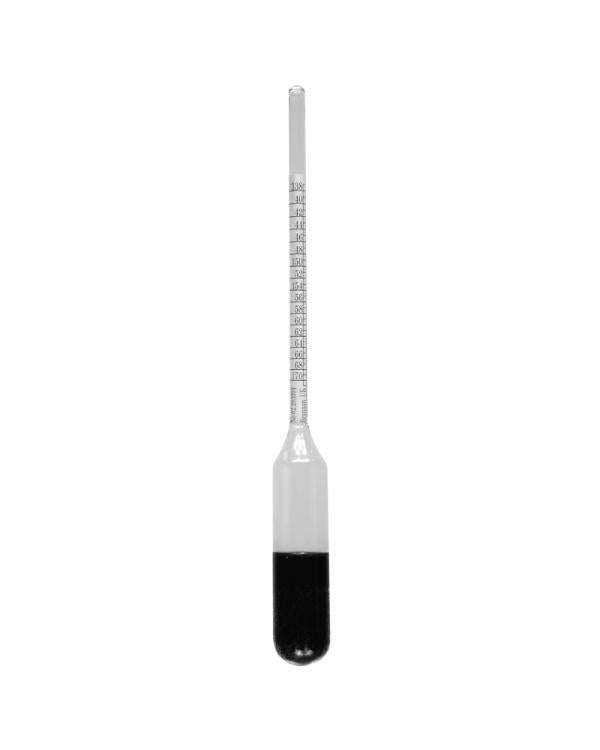

Brannan 10/101/0 | Twaddle Hydrometer | 0 to 24 °Tw, 160 mm
The Brannan 10/101/0 is a 160 mm Twaddle hydrometer reading from 0 to 24 °Tw, starting at the density of water and running to about 1.120 SG. It is the lowest range of the short series, for liquids slightly heavier than water in trades that never switched to density or specific gravity units. Graduations are in single degrees.
Key features
- Scale 0–24 °Tw on a compact 160 mm body
- 0 °Tw marks SG 1.000, matching water at 60/60 °F
- Adjusted at 15.6 °C (60 °F) for medium surface tension liquids
- Supplied in a resealable plastic tube, around 21 g in total
- 10/101/0 can be ordered with UKAS or traceable certification
- Specifications
- Downloads
| Part Number | 10/101/0 |
| Brand | Brannan |
| Scale | Twaddle (°Tw) |
| Range | 0 to 24 °Tw |
| Approx. SG Equivalent | 1.000 to 1.120 |
| Divisions | 1 °Tw |
| Accuracy | ±1 °Tw |
| Overall Length | 160 mm |
| Reference Temperature | 15.6 °C (60 °F) |
| Surface Tension | Medium |
| Material | Soda glass, steel shot ballast, synthetic wax resin |
| Approx. Weight | 21 g incl. 8 g protective tube |
| Supplied In | Protective resealable plastic tube |
| Origin | Made in UK |
