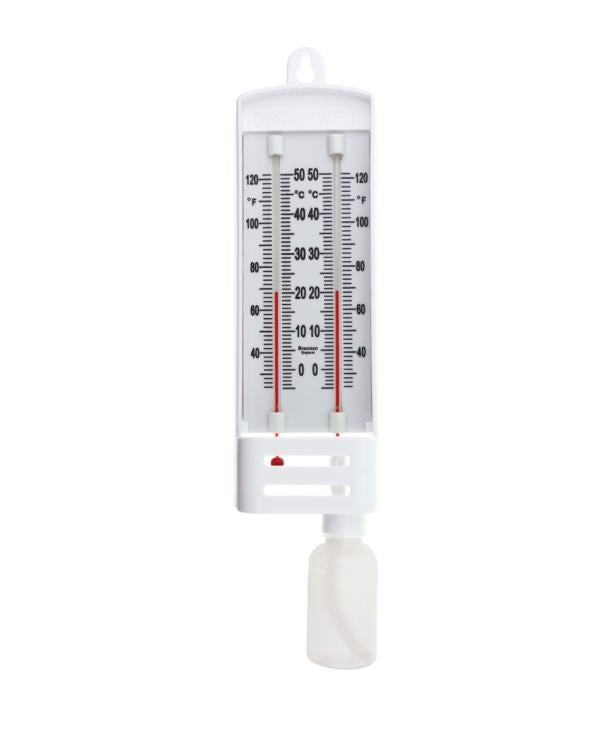

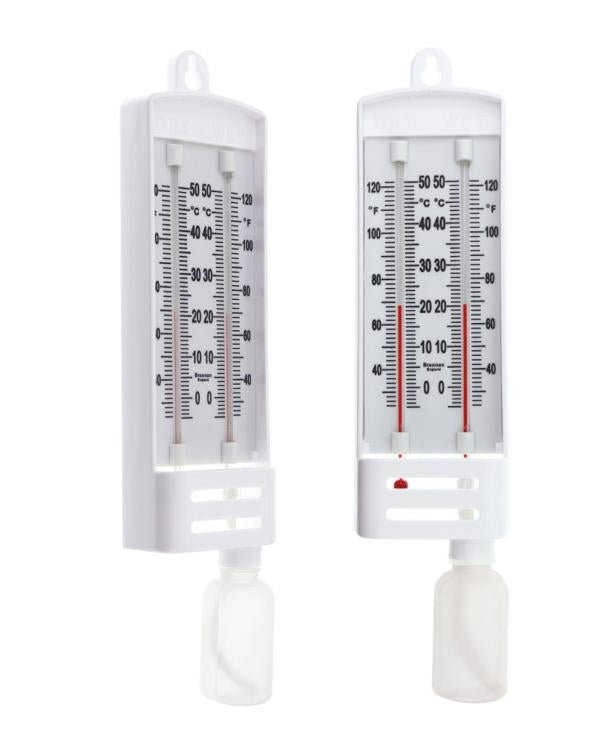

Brannan 13/222/3 | Mason's Wet & Dry Bulb Hygrometer | -5 to +50 °C
Brannan 13/222/3 is a Mason's hygrometer, a simple form of psychrometer for measuring the water vapour in the air as relative humidity (%RH). Two thermometers reading -5 to +50 °C/°F in 1 degree divisions show the wet and dry bulb temperatures, and the supplied table converts the difference between them into a %RH value. It comes with chart and instructions in an individual box, and a replacement reservoir pot is available as 13/087/0.
Key features
- Wet and dry bulb psychrometer
- Measures humidity as %RH
- Accuracy ±1 °C/°F
- Polypropylene case, polyethylene reservoir
- Supplied with conversion chart and instructions
- Specifications
- Downloads
| Part Number | 13/222/3 |
| Brand | Brannan |
| Type | Mason's wet and dry bulb hygrometer |
| Temperature Range | -5 to +50 °C/°F |
| Divisions | 1 °C/°F |
| Accuracy | ±1 °C/°F |
| Case | Polypropylene |
| Scale | Polystyrene |
| Reservoir | Polyethylene |
| Tube | Glass, kerosene filled |
| Dimensions | 310 x 77 x 32 mm |
| Net Weight | 110 g |
| Spare Pot | 13/087/0 |
| EAN | 5011405132222 |
