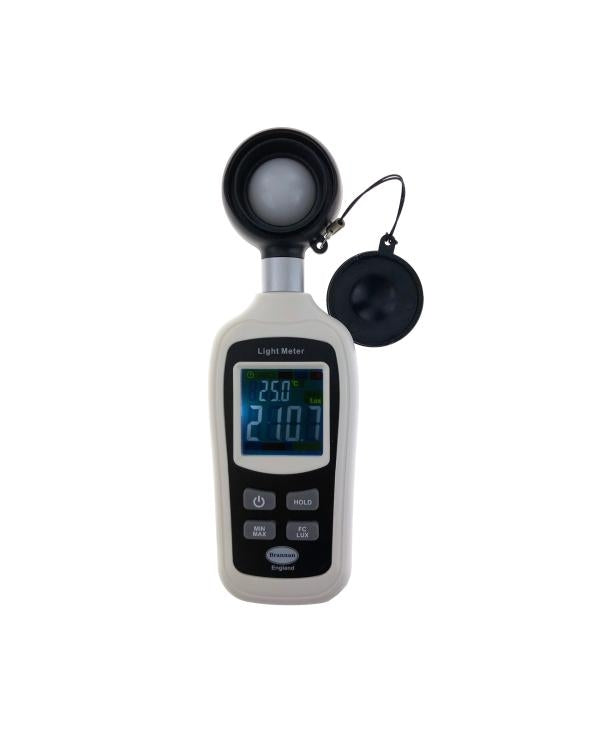

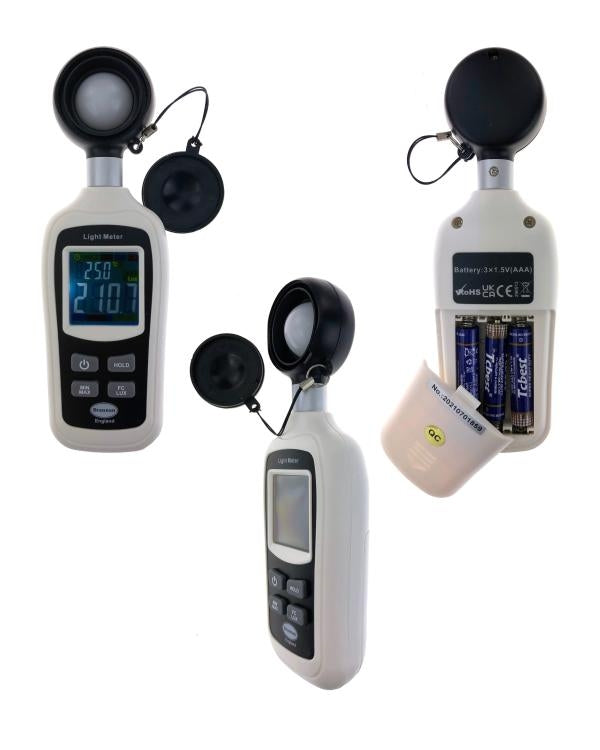

Brannan 13/472/0 | Mini Thermo-Light Meter | 0 to 200 klux, -20 to +70 °C
The Brannan 13/472/0 is a mini thermo-light meter that measures light level from 0 to 200,000 lux (0 to 20,000 fc) alongside temperature from -20 to +70 °C. A silicon photodiode with a CIE photopic spectral response filter matches the human eye, and the meter automatically revises its parameters for non-standard illumination. Results appear on a backlit colour LCD in lux or foot-candles, and a 3-point factory calibration certificate comes with every unit.
Key features
- Light accuracy ±3% rdg ±8 digits below 10,000 lux
- Selectable lux/fc and °C/°F units
- Max/min recording
- Automatic correction for non-standard light sources
- Over range and low battery indication
- Specifications
- Downloads
| Part Number | 13/472/0 |
| Brand | Brannan |
| Light Range | 0 to 200 klux / 0 to 20 kfc |
| Light Accuracy | ±3% rdg ±8 d (<10,000 lux); ±4% rdg ±10 d (>10,000 lux) |
| Temperature Range | -20 to +70 °C/°F |
| Temperature Accuracy | ±1.5 °C (2.7 °F) |
| Spectral Response | CIE photopic |
| Photo Detector | Silicon photodiode with spectral filter |
| Sampling Rate | 2 readings per second |
| Battery | 3 x AAA (included), approx. 60 h |
| Dimensions | 174.5 x 56 x 30.5 mm |
| Calibration | 3-point factory certificate |
| EAN | 5011405134721 |
