Brannan 15/430/0 | Heavy Duty Soil/Silage Dial Thermometer | 0 to 160 °C/°F, 600 mm stem

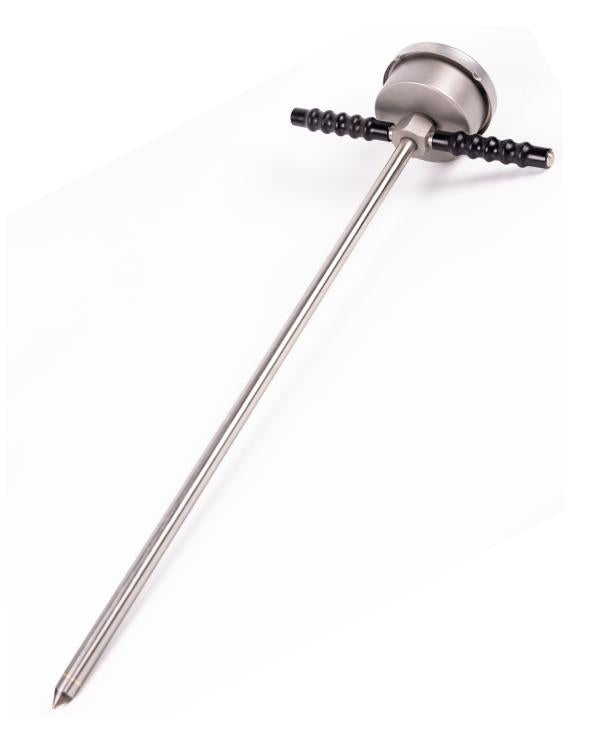

The Brannan 15/430/0 is the silage model of Brannan's portable stainless steel dial thermometers, with a 600 mm spiked stainless steel stem and a 0 to 160 °C/°F range. A heavy duty handle and weatherproof IP67 stainless steel case and bezel make it suited to outdoor use, while a liquid expansion system drives the 100 mm dial. It is designed to BS EN 13190, accuracy class 2.
Key features
- Range 0 to 160 °C/°F
- 600 mm stainless steel stem

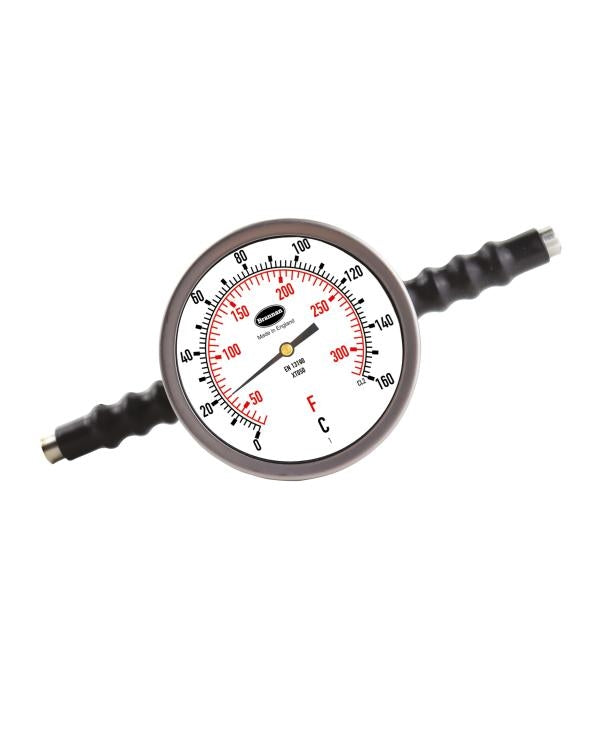

- 100 mm dial, glass window
- Liquid expansion (kerosene) measuring system
- 304 stainless steel case and bezel, IP67
- Heavy duty handle for field use
A certificate traceable to a recognised national standard, or a Statement of Conformity, can be supplied with the 15/430/0 on request.
- Specifications
- Downloads
| Part Number | 15/430/0 |
| Brand | Brannan |
| Application | Silage |
| Range | 0 to 160 °C/°F |
| Stem Length | 600 mm |
| Dial Diameter | 100 mm |
| Design | BS EN 13190, accuracy class 2 |
| Sensor | Liquid expansion (kerosene filling) |
| Case & Bezel | 304 stainless steel |
| Protection | IP67 |
| Operating Temperature | 0 to +40 °C |
| Weight | 1180 g |
| Family Code | XT050 |
