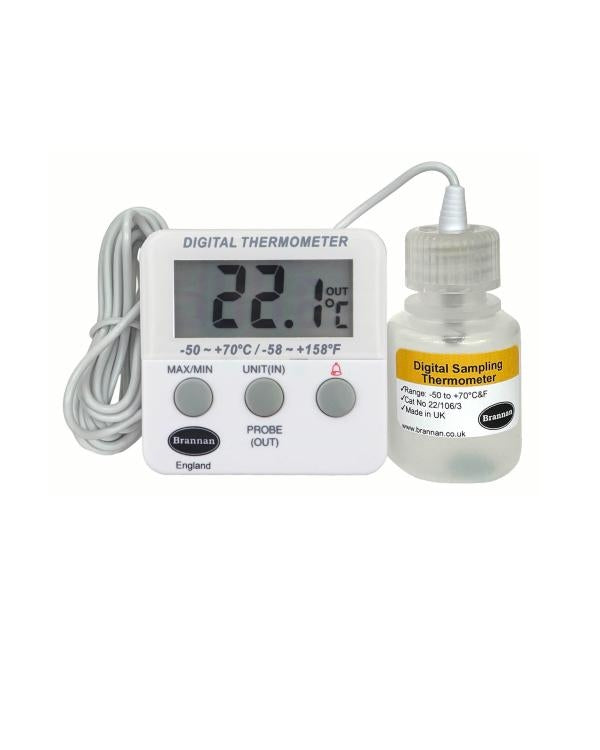

Brannan 22/106/3 | Max Min Digital Batch Sampling Thermometer | -50 to +70 °C, 2 m Cable
Brannan 22/106/3 is a max min digital reading thermometer for use with Brannan batch sampling thermometers, monitoring samples in controlled storage. Its external sensor sits on a 2 m cable inside a bottle that holds a core temperature similar to the stored samples, so readings are not thrown by short-term fluctuations from thermostat cycling or door openings. The external probe reads -50 to +70 °C, the display unit -10 to +50 °C, with 0.1 °C resolution and a high/low alarm.
Key features
- Max and min recording with high/low alarm
- Readings unaffected by short-term fluctuations
- Celsius and Fahrenheit switchable
- 2 m cable to external sensor
- Body fitted with magnet, clip and stand

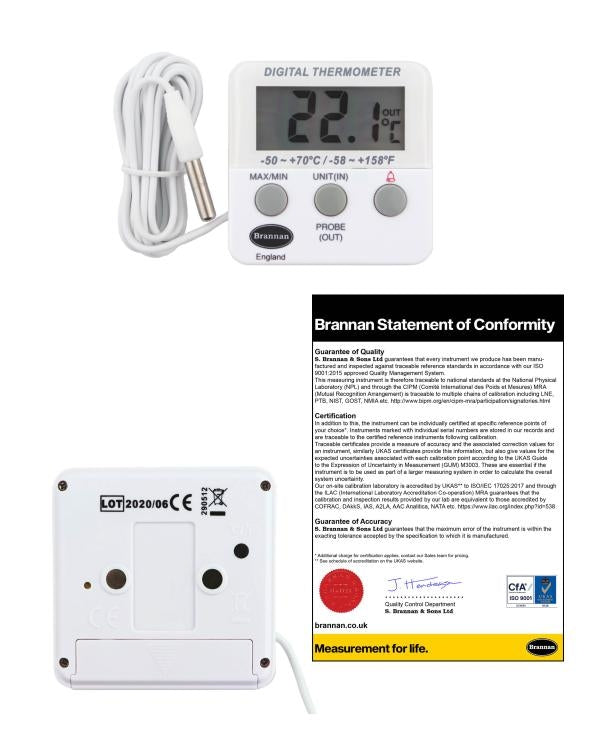

- Supplied with statement of accuracy
- Specifications
- Downloads
| Part Number | 22/106/3 |
| Brand | Brannan |
| External Range | -50 to +70 °C/°F |
| Internal Range | -10 to +50 °C/°F |
| Resolution | 0.1 °C |
| Accuracy | Internal ±1 °C; external ±1.5% (-50 to -20 °C), ±1.0% (-20 to +70 °C) |
| Sampling Time | 10 s |
| Probe | 21 mm with 2 m cable |
| Battery | 1 x AAA (supplied) |
| Display | 21 x 47 mm LCD |
| Dimensions | 63 x 63 x 15 mm |
| Mounting | Magnet, clip, stand |
| Compliance | CE, RoHS/WEEE |
| EAN | 5011405221063 |
