Brannan 22/862/2 | LO-tox Pocket Test Thermometer, Slot Front Aluminium Case | -30 to +50 °C

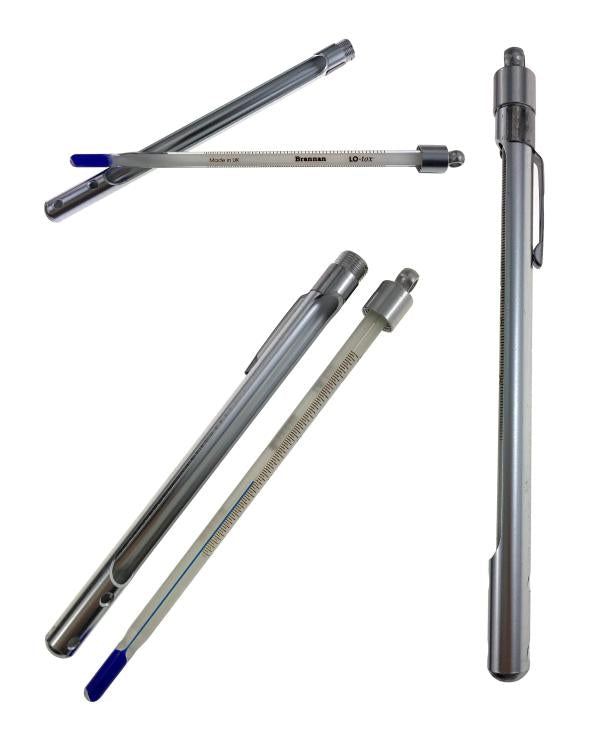

Brannan 22/862/2 covers the lower end of the series, reading -30 to +50 °C on a Celsius-only scale with 1 °C divisions. The glass thermometer is fixed in a slot front aluminium case to protect it during use, and its blue LO-tox filling replaces mercury. Calibration is for total immersion.
Key features
- Sub-zero range: -30 to +50 °C
- Celsius scale, 1 °C divisions
- Blue LO-tox filling
- Aluminium case with slot front
- Made in UK
Brannan can supply 22/862/2 with a certificate traceable to a recognised national standard or a statement of conformity, if required.
- Specifications
- Downloads
| Part Number | 22/862/2 |
| Brand | Brannan |
| Temperature Range | -30 to +50 °C |
| Divisions | 1 °C |
| Scale | Celsius only |
| Filling | Blue LO-tox spirit |
| Immersion | Total immersion |
| Case | Aluminium, slot front |
| Dimensions | 158 mm x 11 mm diameter |
| Weight | 21 g |
| Origin | Made in UK |
