Brannan 22/880/2 | LO-tox Pocket Test Thermometer, Slot Front Aluminium Case | 0 to +50 °C

Name: Brannan 22/880/2 | LO-tox Pocket Test Thermometer, Slot Front Aluminium Case | 0 to +50 °C
Brand: Brannan
SKU: 22/880/2
Availability: InStock

Part Number : 22/880/2

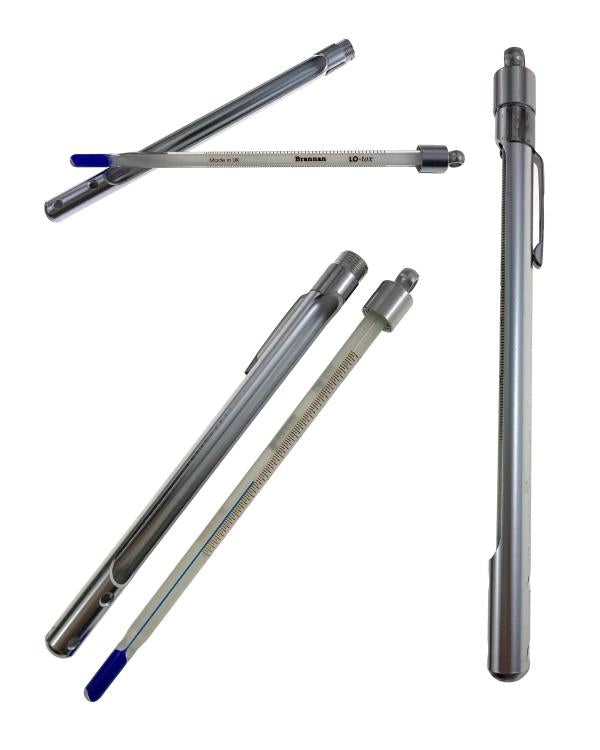

Brannan 22/880/2 is the finest-graduated thermometer in this pocket series, reading 0 to +50 °C in 0.5 °C divisions on a Celsius-only scale. The LO-tox filled glass sits inside a slot front aluminium case for protection, and it is calibrated for total immersion.

Key features

Range 0 to +50 °C
Fine 0.5 °C divisions
Blue LO-tox filling
Slot front aluminium case, 158 x 11 mm
Made in UK

Brannan can supply 22/880/2 with a certificate traceable to a recognised national standard or a statement of conformity, if required.

Availability: in stock

Specifications
Downloads

Part Number	22/880/2
Brand	Brannan
Temperature Range	0 to +50 °C
Divisions	0.5 °C
Scale	Celsius only
Filling	Blue LO-tox spirit
Immersion	Total immersion
Case	Aluminium, slot front
Dimensions	158 mm x 11 mm diameter
Weight	21 g
Origin	Made in UK
