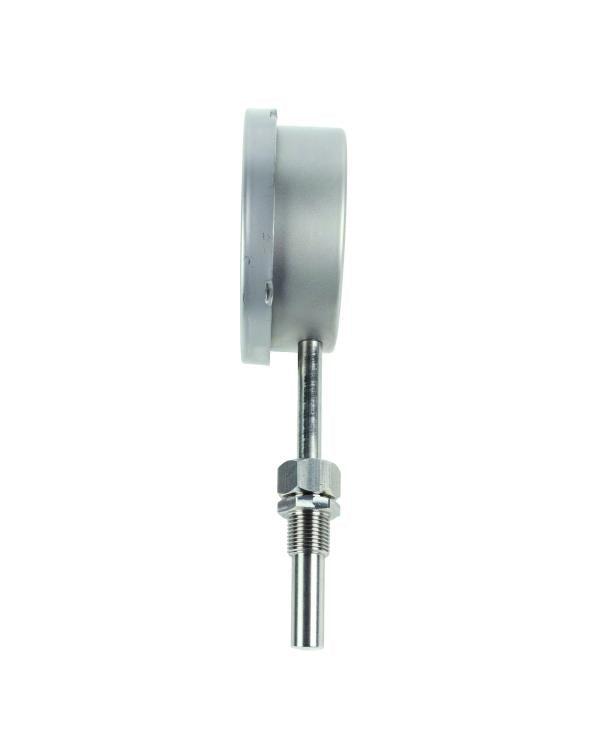

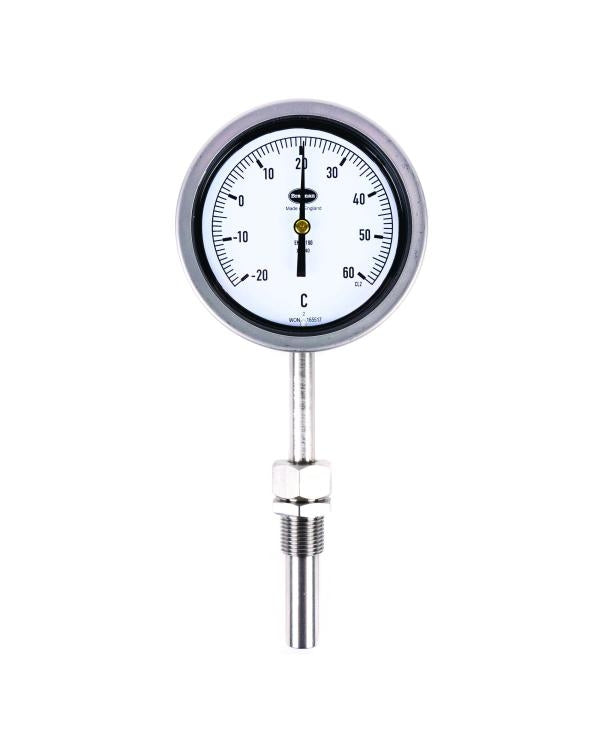

Brannan 300/683/0 | Liquid Expansion Dial Thermometer | 100 mm, -20 to +60 °C, bottom entry, 250 mm stem, 150 mm pocket
Brannan 300/683/0 is a 100 mm (4in) liquid expansion dial thermometer with a -20 to +60 °C scale (Celsius only), bottom entry and a 250 mm stem, supplied complete with a 150 mm pocket. It belongs to the XT040 premium series, made in Brannan's UK factory with a weatherproof 304 stainless steel case and bezel for outdoor and high humidity installations. The kerosene-filled measuring system is designed to BS EN 13190, accuracy class 2, with a 1/2in BSP thread.
Key features
- High quality liquid expansion measuring system
- 304 stainless steel case and bezel, IP67 protection
- Accuracy class 2, designed to BS EN 13190
- 1/2in BSP thread size
- For outdoor and high humidity installations
- Wide range of associated accessories available
A certificate traceable to a recognised national standard, or a statement of conformity, is available from Brannan if required.
- Specifications
- Downloads
| Part Number | 300/683/0 |
| Brand | Brannan |
| Dial Diameter | 100 mm (3.94 in) |
| Range | -20 to +60 °C only |
| Stem Length | 250 mm (9.84 in) |
| Design | BS EN 13190 |
| Case | 304 Stainless steel |
| Sensor Mechanism | Liquid expansion (Kerosene filling) |
| Accuracy Class | 2 |
| Thread Size | 1/2in BSP |
| Protection | IP 67 |
| Pocket Length | 150 mm (5.91 in) |
| Connection Orientation | Bottom entry |
| Bezel | 304 Stainless steel |
| Supplied with | |
| Stem | 303 Stainless steel |
