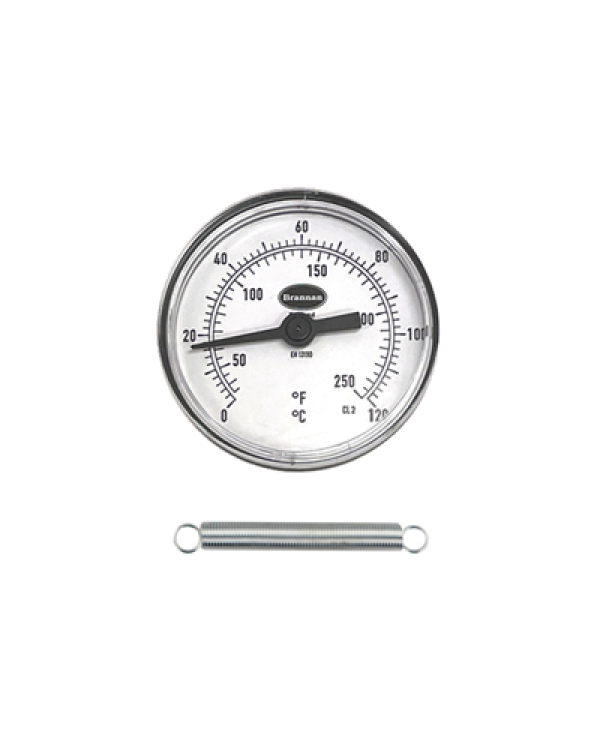

Brannan 33/404/0 | Clip-On Pipe Thermometer, Plastic, No Bezel | 0 to +120 °C/°F
Brannan 33/404/0 is the plain plastic-cased clip-on pipe thermometer, supplied without a bezel and with a plastic window. Its 63 mm dial reads 0 to +120 °C/°F, and the spring provided clamps it to hot or chilled water pipes between 20 and 50 mm across. As it measures from outside the pipe wall, the dial carries a factory adjustment to track the water inside, and Brannan advises against laboratory calibration.
Key features
- Plastic case without bezel
- 63 mm dial, 0 to +120 °C/°F
- Plastic window
- Spring for 20 to 50 mm pipes
- Bimetal coil, ±4 °C accuracy
- Specifications
- Downloads
| Part Number | 33/404/0 |
| Brand | Brannan |
| Range | 0 to +120 °C/°F |
| Dial Diameter | 63 mm |
| Case | Plastic, no bezel |
| Window | Plastic |
| Pipe Diameter | 20 to 50 mm |
| Sensor | Bimetal coil |
| Accuracy | ±4 °C |
| Design | BS EN 13190 |
| Weight | 56 g |
| EAN | 5011405334046 |
