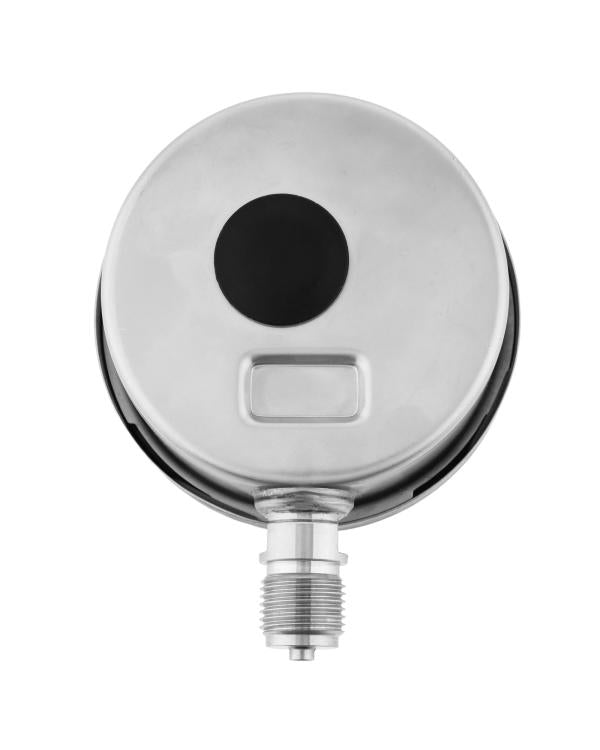

Brannan 35/438/5 | Premium Stainless Steel Pressure Gauge | 115 mm, 0 to 400 psi, glycerine filled, 1/2 in BSP bottom
Part Number : 35/438/5
Brannan 35/438/5 is a 115 mm (4.5 in) premium stainless steel pressure gauge reading 0 to 400 psi, with psi on the red outer scale and bar on the black inner scale, supplied glycerine filled with a 1/2 in BSP bottom connection. Part of the PG040 range, it is built for harsh and corrosive environments and pressure media, with 316L stainless steel wetted parts, a case and connection welded together, and a vibration and shock resistant mechanism with flow restrictor.
Key features
- Stainless steel 316L bourdon tube and connection
- Stainless steel 304 case with bayonet bezel, IP67
- Black aluminium micro adjustable pointer
- Tempered safety glass window
- Accuracy class 1.0% (0.5% optional)
- Designed to BS EN 837 / ASME B40.100
UKAS certification, traceable calibration or a statement of conformity are offered as extras.
For pricing, please contact our experts.
