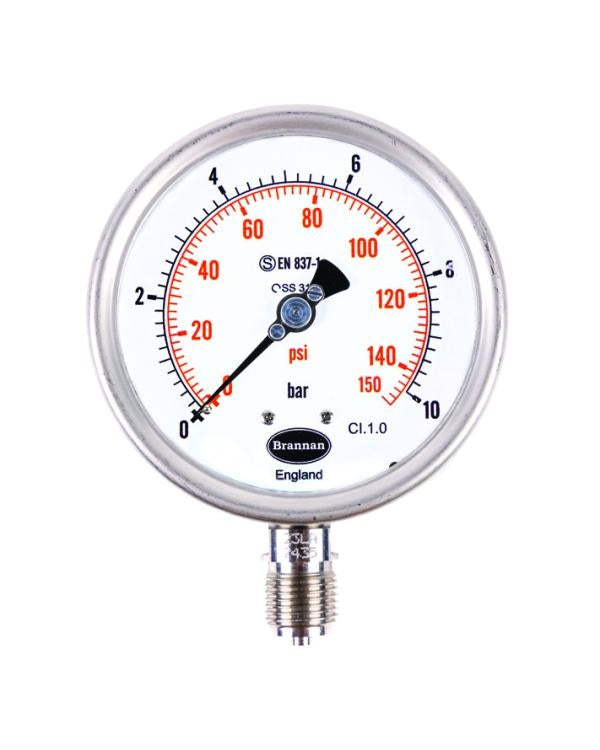

Brannan PG045 | Safety Pattern Stainless Steel Pressure Gauge | S3, IP67, 1% Class
Part Number : PG045
Brannan PG045 is a safety pattern pressure gauge built for applications where operator safety is critical, such as oil and gas, chemical and petrochemical plants. The stainless steel case has a solid front baffle wall, blowout back and laminated safety glass window, meeting safety category S3 to BS EN 837 / ASME B40.100. SS316L Bourdon tube and connection (Monel or Hastelloy-C276 optional) suit corrosive media, and the gauge can be supplied dry or filled with glycerine, silicone or halocarbon.
Key features

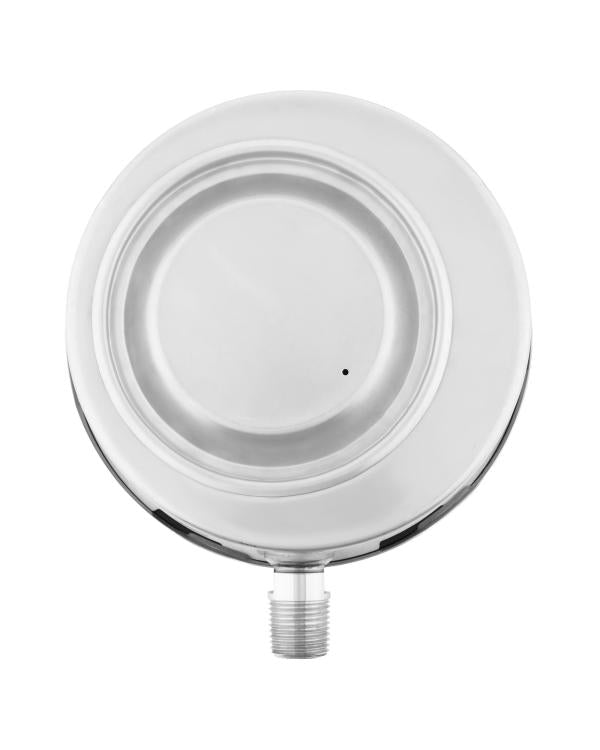

- Solid front baffle wall and blowout back
- Laminated safety glass window
- Accuracy class 1% (0.5% optional)
- SS316L wetted parts; Monel or Hastelloy-C276 optional
- IP67, case and socket welded
- 100, 115 or 150 mm dials; ranges up to 0 to 2500 bar
Brannan offers UKAS certification, a certificate traceable to a recognised national standard or a statement of conformity for this gauge.
For pricing, please contact our experts.
