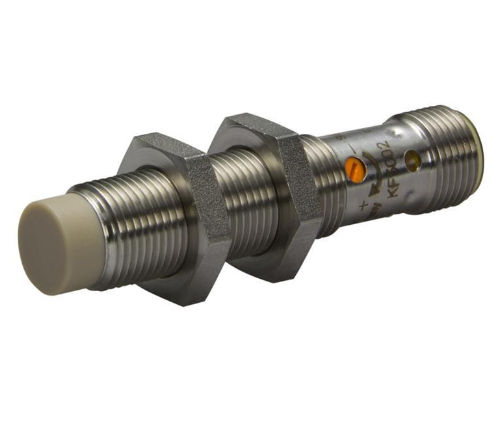

Capacitive sensor ifm electronic KF5002 - KFA3080NBPKG/NI/US
The capacitive sensor KF5002 - KFA3080NBPKG/NI/US from ifm with an M12 x 1 metal thread and an operating voltage of 10-36 V DC has a normally open contact as output signal. The sensing range is selectable from 3-12 mm with non-flush installation. The capacitive sensor KF5002 - KFA3080NBPKG/NI/US has an M12 plug-and socket connection. Due to the increased noise immunity and the protection rating IP65 detection of dry bulk material and liquids is possible without any problems.
- Specifications
- Features
- Downloads
| Electrical design | PNP |
| Housing | Threaded type |
| Mounting | non-flush mountable |
| Operating voltage [V] | 10-36 DC V |
| Output function | normally open |
| Overload protection | yes |
| Reverse polarity protection | yes |
| Sensing range [mm] | 8 mm |
| Short-circuit protection | yes |
| Switching frequency DC [Hz] | 50 Hz |
- Compact and robust stainless steel housing
- Easy setting of the sensing range via potentiometer
- Clearly visible indication of the switching status
- High noise immunity
- For position detection or level monitoring
