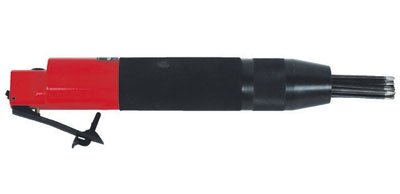

Chicago Pneumatic B16MV | Vibration-Damped Needle Scaler | 2,400 BPM, 1.8 J, 1/4 in inlet
The Chicago Pneumatic B16MV is a vibration-damped needle scaler delivering 2,400 blows per minute, 1.8 J impact energy through a 1/4 in air inlet. The B16MV is 360 mm long and weighs 2.4 kg.
- Vibration-damped straight needle scaler
- Low vibration for smooth, long working sessions; 2.4 kg net weight
- One-hand operation; 11 mm stroke
- Adjustable front tube for extended needle life; sound pressure 86 dB(A)
- Takes 19 x 3 mm (1/8 in) needles, 23.5 mm bore and 11 mm stroke
- 2.4 l/s air consumption, vibration 4.8 m/s² and sound pressure 86 dB(A)
- Specifications
- Features
| Part Number | B16MV |
| Brand | Chicago Pneumatic |
| Product Number | 6151740500 |
| Blows per minute | 2,400 |
| Impact energy | 1.8 J |
| Needle capacity | 19 x 3 mm (1/8 in) |
| Stroke | 11 mm |
| Bore | 23.5 mm |
| Air inlet thread | 1/4 in |
| Air consumption | 2.4 l/s |
| Length | 360 mm |
| Net weight | 2.4 kg |
| Vibration | 4.8 m/s² |
| Sound pressure | 86 dB(A) |
- Straight vibration-damped needle scaler
- Good power/weight ratio
- Great durability on all industrial maintenance applications
- Easy to convert into chipping hammer
Related Products
FUJI FS-2 | Piston Scaler | 8000 bpm, 30 mm Bore, 16 mm Stroke
FUJI FS-2 | Piston Scaler | 8000 bpm, 30 mm Bore, 16 mm Stroke
FUJI FNS-2 | Needle Scaler | 8000 bpm, 20 mm Stroke
FUJI FNS-2 | Needle Scaler | 8000 bpm, 20 mm Stroke

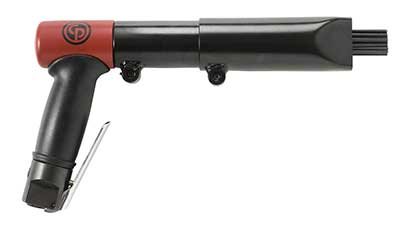

Chicago Pneumatic CP7125 | Pneumatic Needle Scaler | 4,000 BPM, 5 J, 1/4 in inlet
Chicago Pneumatic CP7125 | Pneumatic Needle Scaler | 4,000 BPM, 5 J, 1/4 in inlet

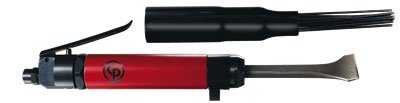

Chicago Pneumatic CP7120 | Needle Scaler / Chisel | 4,800 BPM, 5.3 J, 1/4 in inlet
Chicago Pneumatic CP7120 | Needle Scaler / Chisel | 4,800 BPM, 5.3 J, 1/4 in inlet

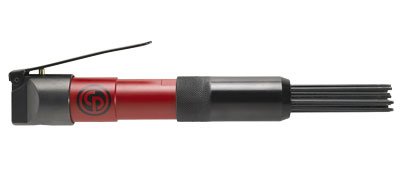

Chicago Pneumatic CP7115 | Pneumatic Needle Scaler | 4,000 BPM, 2.2 J, 1/4 in inlet
Chicago Pneumatic CP7115 | Pneumatic Needle Scaler | 4,000 BPM, 2.2 J, 1/4 in inlet
Chicago Pneumatic CP0952 | Pneumatic Needle Scaler | 4,000 BPM, 4.8 J, 3/8 in inlet
Chicago Pneumatic CP0952 | Pneumatic Needle Scaler | 4,000 BPM, 4.8 J, 3/8 in inlet

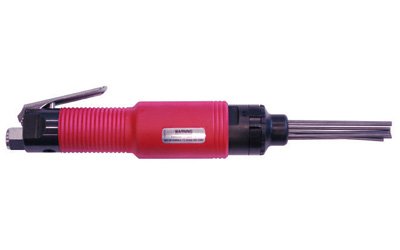

Chicago Pneumatic CP0951 | Pneumatic Needle Scaler | 4,000 BPM, 4.8 J, 3/8 in inlet
Chicago Pneumatic CP0951 | Pneumatic Needle Scaler | 4,000 BPM, 4.8 J, 3/8 in inlet

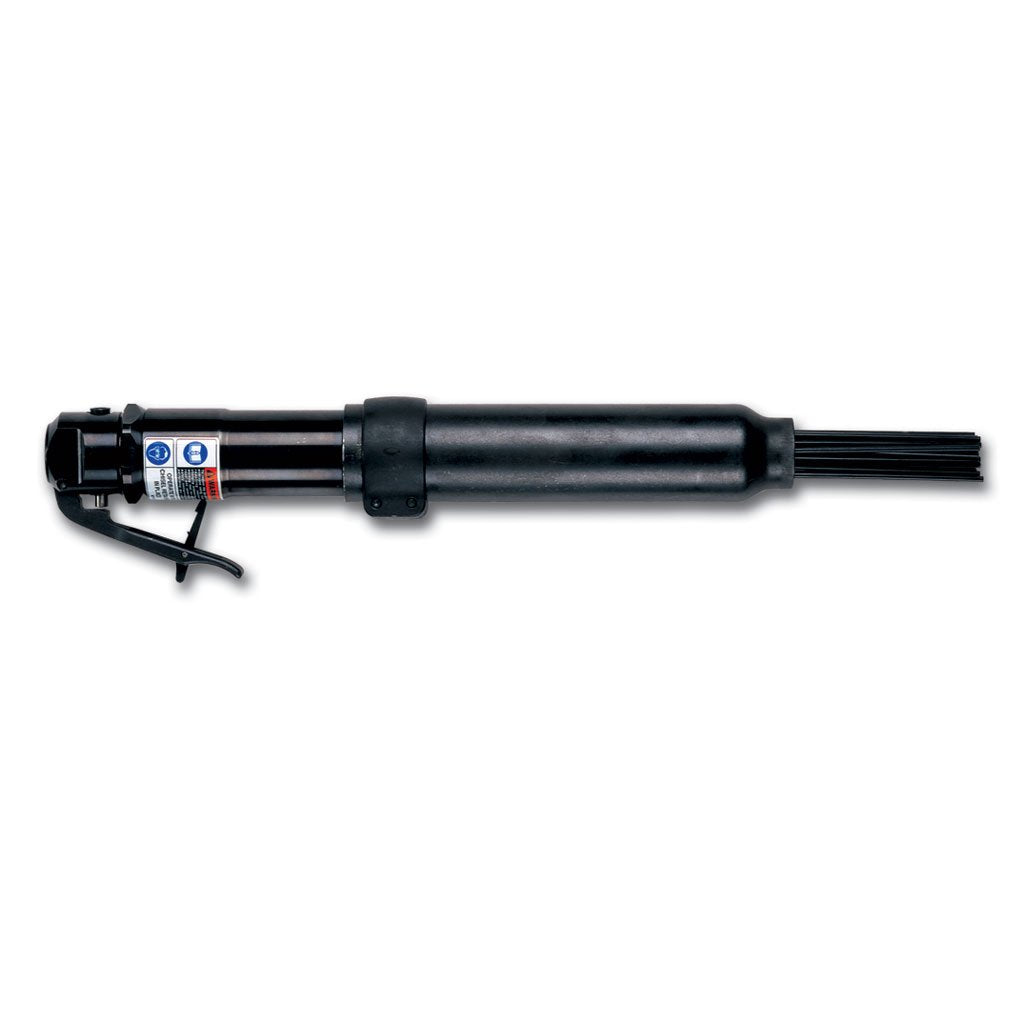

Chicago Pneumatic CP0456-LASAN | Pneumatic Needle Scaler | 4,300 BPM, 4.3 J, 1/4 in inlet
