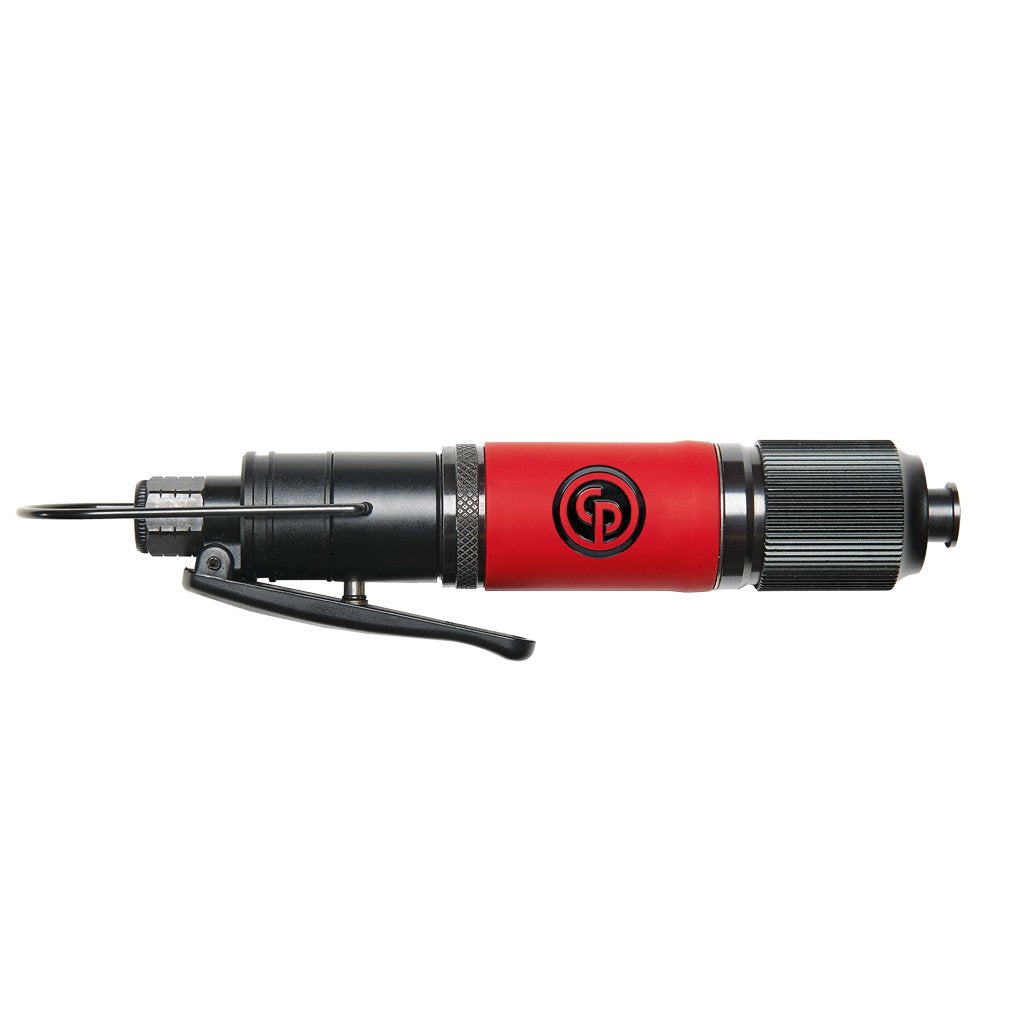

Chicago Pneumatic CP2828 | Straight Cushion Clutch Air Screwdriver | 1.8-3.2 Nm, 1,300 rpm
The Chicago Pneumatic CP2828 is a straight cushion clutch air screwdriver that delivers 1.8 to 3.2 Nm of working torque at a free speed of 1,300 rpm, with a 1/4 in output drive. A slim industrial tool for assembly lines, it is comfortable to hold and built to be robust and durable.
- Straight handle with cushion clutch
- Net weight 0.6 kg (1.3 lb), length 190 mm (7.5 in)
- Free speed air consumption: 7 l/s (14.8 cfm)
- Sound pressure 73 dB(A), vibration 0.3 m/s²
- Manufacturer product number 6151630040
- Specifications
- Features
| Part Number | CP2828 |
| Brand | Chicago Pneumatic |
| Clutch type | Cushion |
| Handle type | Straight |
| Working torque range | 1.8-3.2 Nm |
| Free speed | 1,300 rpm |
| Output drive | 1/4 in |
| Net weight | 0.6 kg (1.3 lb) |
| Length | 190 mm (7.5 in) |
| Air inlet thread | 1/4 in |
| Air consumption (free speed) | 7 l/s (14.8 cfm) |
| Sound pressure level | 73 dB(A) |
| Vibration | 0.3 m/s² |
| Min. hose size | 10 mm (3/8 in) |
- Small diameter - good grip
- High speed
- Low noise and vibration level
