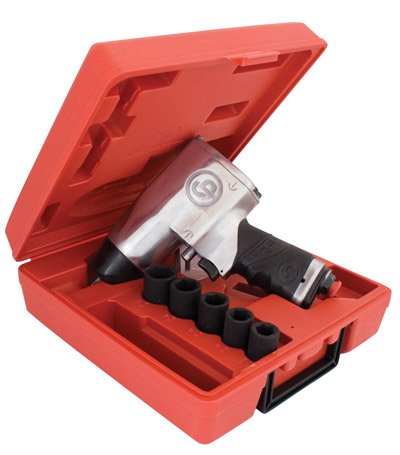

Chicago Pneumatic CP734H Kit Metric | Impact Wrench Kit, Metric | 1/2" Drive, 34–420 Nm
Chicago Pneumatic's CP734H Kit Metric impact wrench kit has a 1/2" square drive and works across 34–420 Nm (25–310 ft.lbs). The tool comes in a metric kit with 5 sockets for general maintenance applications.
- Metric kit of 5 sockets
- Maximum reverse torque of 576 Nm (425 ft.lbs); 8400 rpm free speed
- Weighs 2.32 kg (5.13 lb) and measures 191 mm (7.5 in)
- Air inlet 1/4", 10 mm (3/8 in) minimum hose; actual air use 7.1 l/s (15 cfm)
- 93 dB(A) sound pressure and 7.2 m/s² vibration
- Specifications
- Features
| Part Number | CP734H Kit Metric |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Kit Contents | Metric kit of 5 sockets |
| Working Torque Range | 34–420 Nm (25–310 ft.lbs) |
| Maximum Torque (Reverse) | 576 Nm (425 ft.lbs) |
| Free Speed | 8400 rpm |
| Net Weight | 2.32 kg (5.13 lb) |
| Length | 191 mm (7.5 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 7.1 l/s (15 cfm) |
| Product Number | T025164 |
| Sound Pressure | 93 dB(A) |
- Imperial kit with 1/2" impact wrench for general maintenance
- Kit includes 5 socket : 14, 16, 17, 19, 22mm
