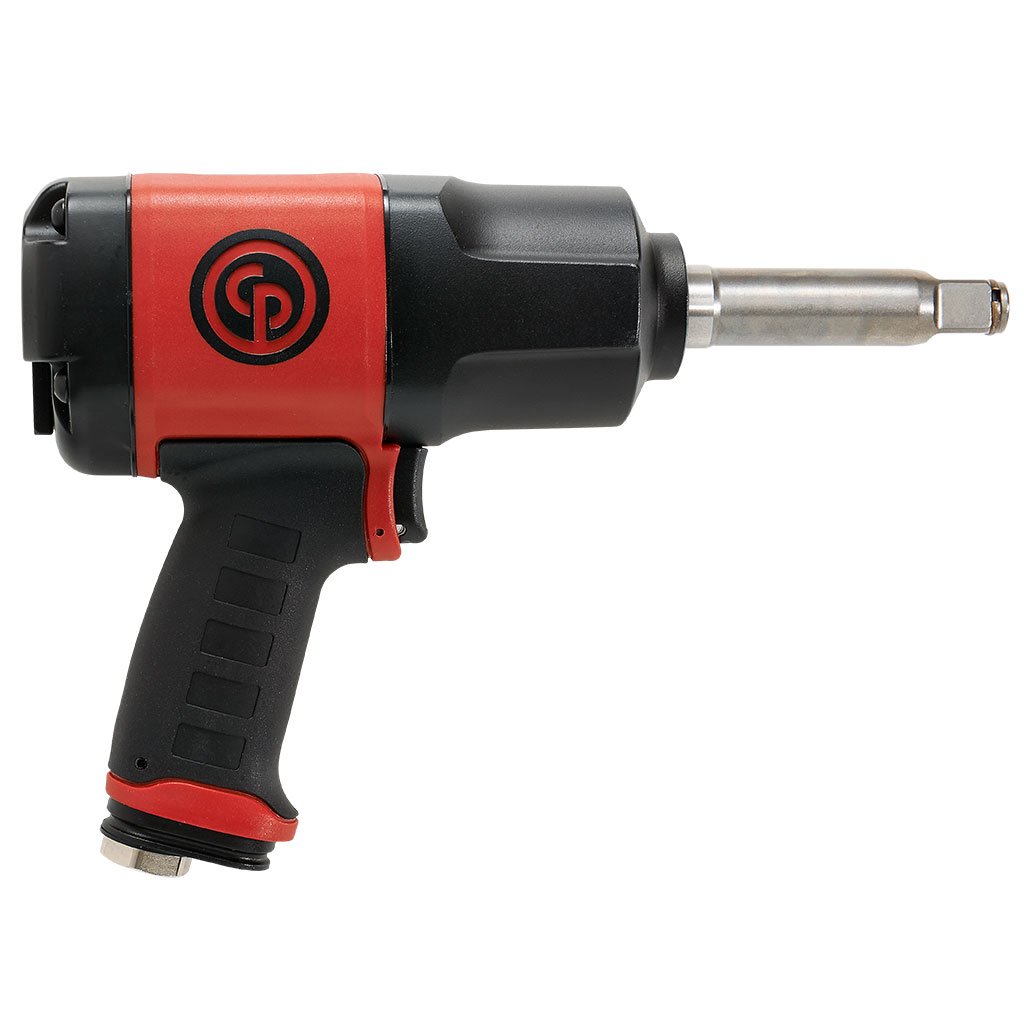

Chicago Pneumatic CP7748-2 1/2 Impact Wrenches 102-786NM

Name: Chicago Pneumatic CP7748-2 1/2 Impact Wrenches 102-786NM
Brand: ChicagoPneumatic
SKU: CP7748-2
Price: 1540.66 AED
Availability: InStock

Part Number : CP7748-2

Durable, Powerful & Ergonomic. Most powerful tool on the market in its class: 922 ft.lbs – 1250 Nm of maximum real torque in reverse. Best price to performance/durability ratio. Lightweight due to composite housing. Contoured comfort grip handle instead of TPR injected in handle. Smooth Forward / Reverse Switch on back. Suited for all maintenance applications: Light vehicle tire changing, General maintenance on vehicles and MRO applications.Range: 102 - 786 Nm 920 ft.lbs

Availability: low stock

Specifications
Features

Actual air consumption	Metric: 12 l/s Imperial: 6.2 cfm
Air inlet thread size	1/4"
Average air consumption	Metric: 3 l/s Imperial: 6.2 cfm
Brand	Chicago Pneumatic
Free Speed	8200 rpm
Length	Metric: 250 mm Imperial: 9.8"
Min. Hose Size	Metric: 10 mm Imperial: 3/8"
Model Number	CP7748-2
Net weight	Metric: 2.4 kg Imperial: 5.1 lb
Over carton	Metric: 455420240 mm Imperial: 17.916.59.45
Power/weight ratio	Metric: 520.8 Nm/kg Imperial: 180.8 ft.lb/lb
Product Number	8941077482
Range Imperial	75 - 580 ft.lbs
Range Metric	102 - 786 Nm
Side to center	Metric: 38 mm Imperial: 1 1/2"
Sound Power	104 db(A)
Sound pressure	93 db(A)
Square Drive	1/2"
Vibration uncertainty (K)	2.34 m/s2
Vibration	10.1 m/s2

1/2" composite impact wrench
One handed forward/reverse
Full power in reverse: 922 ft. lb - 1250 Nm maximum real torque in reverse
3 positions in forward: Low - 180 ft-lbs. / 245 Nm - Medium - 480 ft-lbs. / 650 Nm - High - 730 ft-lbs. / 990 Nm
Aluminum clutch & back housing
Friction ring socket retainer
Full teasing trigger
Curved to be more ergonomic, Smaller diameter to fit better in hand palm and to be optimum balanced
Handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip; Resistant to most chemicals used in workshops
Twin hammer mechanism
360° swivel air inlet
Composite housing
