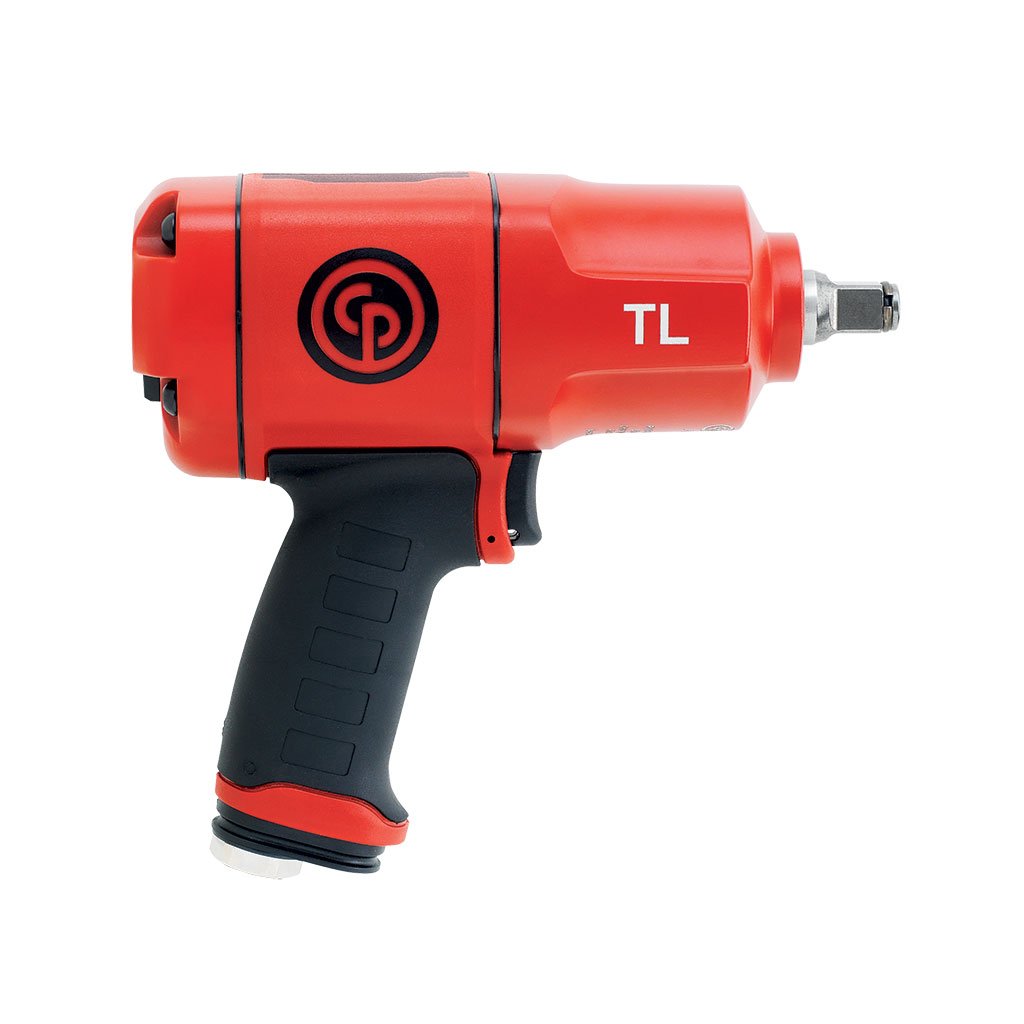

Chicago Pneumatic CP7748TL | Torque-Limited Impact Wrench | 1/2" Drive, 90–96 Nm
Rated for 90–96 Nm (66–70 ft.lbs), the CP7748TL is a 1/2" torque-limited impact wrench from Chicago Pneumatic. It is designed for light vehicle tyre changing.
- Forward torque limited to 60/70 ft.lbs (90/100 Nm)
- Full power in reverse
- One-hand operation with 2 power settings; contoured comfort grip and low sound level
- Maximum reverse torque of 1250 Nm (920 ft.lbs); 8200 rpm free speed
- Net weight 2.2 kg (4.8 lb), length 200 mm (7.8 in)
- Air inlet 1/4", 10 mm (3/8 in) minimum hose
- Specifications
- Features
| Part Number | CP7748TL |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 90–96 Nm (66–70 ft.lbs) |
| Forward Torque Limit | 90/100 Nm (60/70 ft.lbs) |
| Maximum Torque (Reverse) | 1250 Nm (920 ft.lbs) |
| Free Speed | 8200 rpm |
| Net Weight | 2.2 kg (4.8 lb) |
| Length | 200 mm (7.8 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Product Number | 8941077484 |
| Sound Pressure | 86 dB(A) |
| Vibration | 4.8 m/s² |
- 1/2" composite impact wrench with friction ring socket retainer
- 2 setting positions : one in Reverse and one Torque Limited in forward
- 60/70 ft. lbs. - 90/100 Nm in torque limited position in forward
- 920 ft.lbs - 1,250Nm of maximum torque in reverse
- Aluminum clutch & rear housings
- Thermo-plastic rubber injected in housing - Resistant to most chemicals used in workshops
- Universal & durable twin hammer mechanism
- Full teasing trigger
- 360° swivel air inlet
- The CP7748TL series is intended to be used as a “snugging” tool prior to final tightening with a calibrated torque wrench to reach the car manufacturer’s specified torque rating for wheel assembly.
- Torque results vary greatly depending on the type of wheel, air pressure, run time and many other factors.
