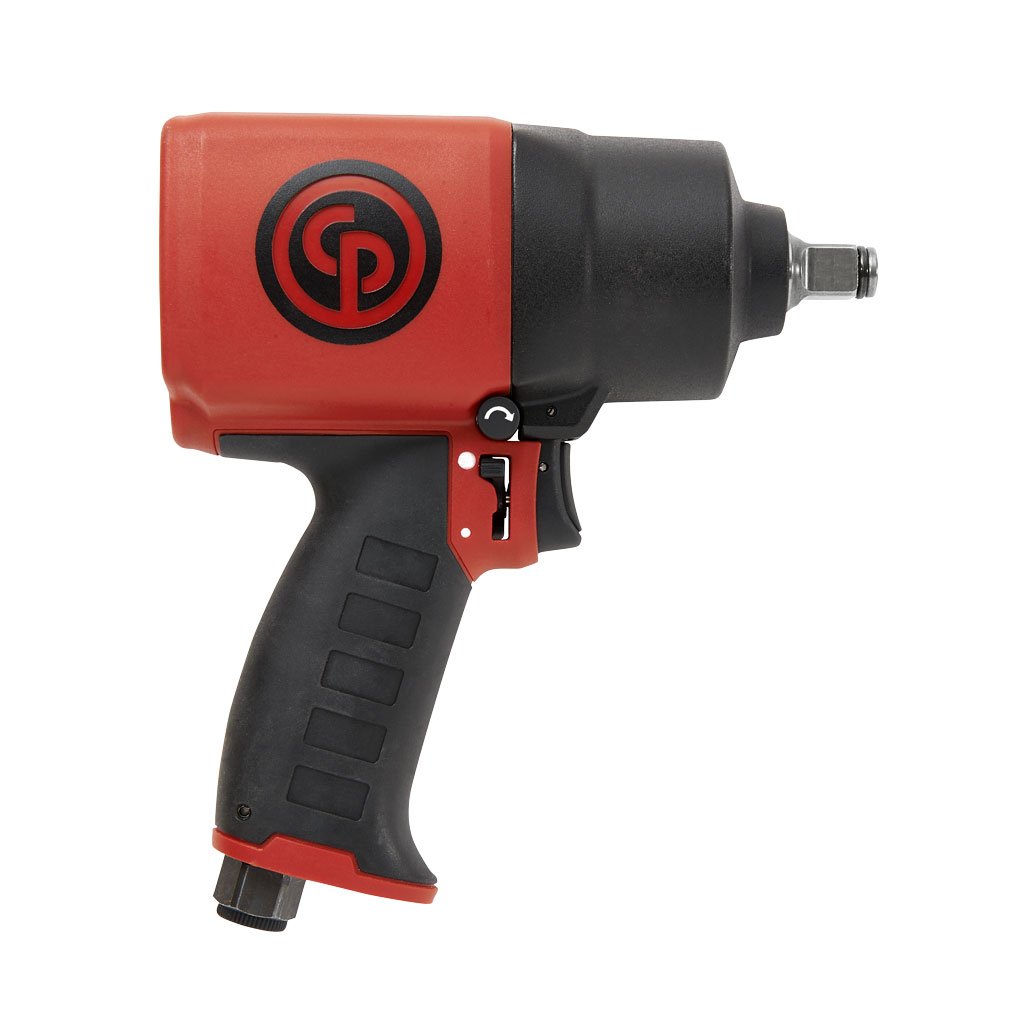

Chicago Pneumatic CP7749 | Compact Impact Wrench | 1/2" Drive, 135–704 Nm
With a 1/2" square drive and 135–704 Nm (100–520 ft.lbs) of working torque, the Chicago Pneumatic CP7749 is a compact impact wrench. It is a compact, lightweight tool with high torque.
- Light and compact
- Easy to handle and operate
- Durable design
- Maximum reverse torque: 1300 Nm (955 ft.lbs); free speed 7000 rpm
- Net weight 1.8 kg (4 lb), length 171 mm (6.7 in)
- 1/4" air inlet with minimum hose 10 mm (3/8 in); actual air consumption 12 l/s (25 cfm)
- Specifications
- Features
| Part Number | CP7749 |
| Brand | Chicago Pneumatic |
| Square Drive | 1/2" |
| Working Torque Range | 135–704 Nm (100–520 ft.lbs) |
| Maximum Torque (Reverse) | 1300 Nm (955 ft.lbs) |
| Free Speed | 7000 rpm |
| Net Weight | 1.8 kg (4 lb) |
| Length | 171 mm (6.7 in) |
| Air Inlet Thread | 1/4" |
| Min. Hose Size | 10 mm (3/8 in) |
| Air Consumption (Actual) | 12 l/s (25 cfm) |
| Product Number | 8941077491 |
| Sound Pressure | 95 dB(A) |
| Vibration | 10.9 m/s² |
- 955 ft.lbs - 1300 Nm maximum real torque in reverse
- 3.95 lbs - 1.8 Kg
- 6.7 in - 171 mm length
- Aluminum alloy front housing
- Composite housing
- Curved handle with Thermo-Plastic Rubber injected in housing for a durable and comfortable grip. Resistant to most chemicals used in workshops.
- NEW power setting system : 1 hand-operation behind the trigger
- -> 2 positions in reverse: max and lower torque
- -> 2 position in forward: max and low torque
- Side-to-Side
- Bi-material 2 stage trigger – soft grip
- Twin hammer mechanism
- 360° swivel air inlet
