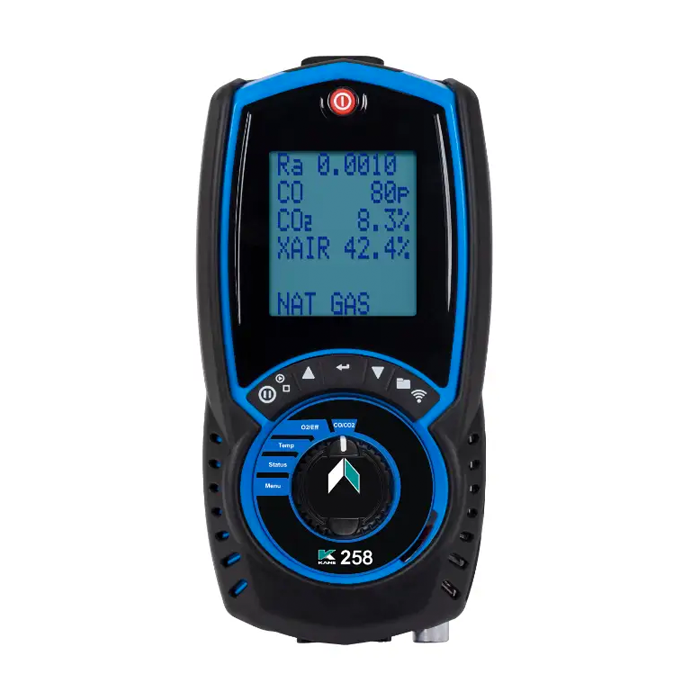

Combustion Flue Gas Analyser | Kane 258
The Kane 258 Combustion Flue Gas Analyzer is an entry-level FGA that measures direct CO and protects O2 and CO sensors. It is also hydrogen ready (H2), can be blended up to 20%, and works with the following fuels: natural gas, butane, LPG, light oil, wood pellets, and propane. The Kane 258 Combustion Flue Gas Analyzer is designed for domestic gas applications and can be used for:
Install and maintain home oil and gas appliances
Examine the combustion performance.
Examine the combustion efficiency.
The Kane 258 Combustion Flue Gas Analyzer can detect carbon monoxide (CO) levels ranging from 0 to 2000ppm, oxygen (O2) levels ranging from 0 to 21%, and differential temperature.

Free UAE shipping available
- Specifications
- Features
- Downloads
Range | CO range: 0 to 2000ppm O2 range: 0 to 21% Calculate CO2 between 0 and 20% |
- A simple-to-use, entry-level FGA with direct CO measurement, and O2 and CO sensor protection
- H2 ready
- Compatible with natural gas, butane, LPG, light oil, wood pellets and propane
- Optimised for domestic gas applications
- Install and service domestic oil and gas appliances
- Check combustion performance
- Check combustion efficiency
- CO range: 0 to 2000ppm
- O2 range: 0 to 21%
- Measure differential temperature
- Calculate CO2 between 0 and 20%
- Calculate CO: CO2 ratio
- Calculate excess air
- Calculate combustion efficiency
- Produce temperature and combustion test reports
- Six-line display
- Data Hold function
- Log data
- Print data (Kane printer required)
- Simple-to-use rotary dial
- OPTIONAL wireless module available
- USB charger
- 10-Year ‘no quibble’ warranty available from Kane (upon FGA recertification by Kane)
- Purge pump protection prevents accidental damage to the CO sensor
- Detachable flue probe
- A versatile, ergonomic and easy-to-use FGA
