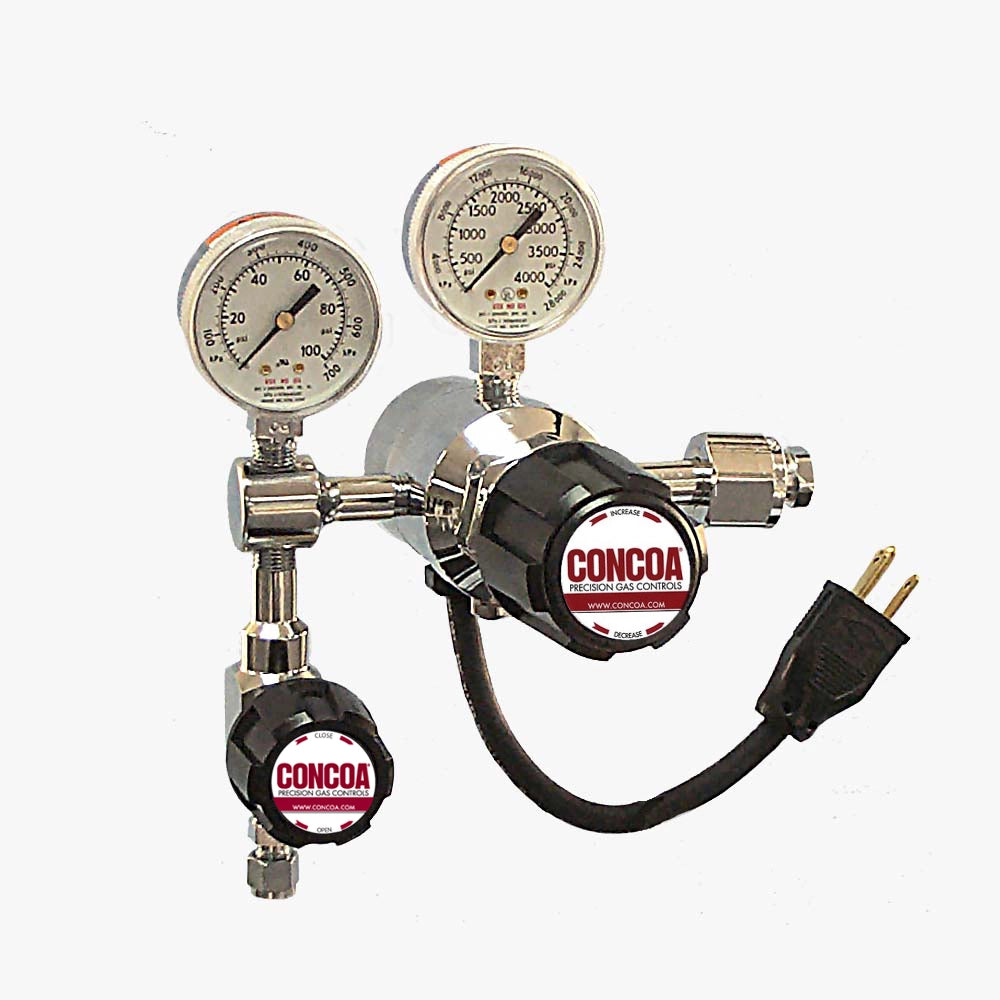

CONCOA 308 Series | Electrically Heated Regulator | CO2 and N2O, 3 x 50 W Heaters
Part Number : CONCOA-308-SERIES-REGULATOR
The CONCOA 308 Series is an electrically heated regulator for primary control of high flows of carbon dioxide or nitrous oxide in critical laboratory work. Three heating cartridges, a primary thermostat and a secondary safety cutout warm the seat directly so dry ice does not form and freeze the regulator. There is no fixed part number for the 308 Series; units are built to an ordering code that specifies outlet range, gauges, connections and options. Choices named by CONCOA include 115 V or 230 V AC power, 3500 or 4500 PSIG inlet ratings, and factory options such as a single station manifold with or without purge, a low-pressure alarm or multiple inlets.
- Three 50 W heaters sustain flows up to 350 SCFH (165 LPM)
- NEMA 4 housing for indoor or outdoor use
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR); 3500 PSIG (240 BAR) or 4500 PSIG (310 BAR) optional
- Body: Chrome-plated brass barstock; bonnet: chrome-plated brass barstock
For pricing, please contact our experts.
