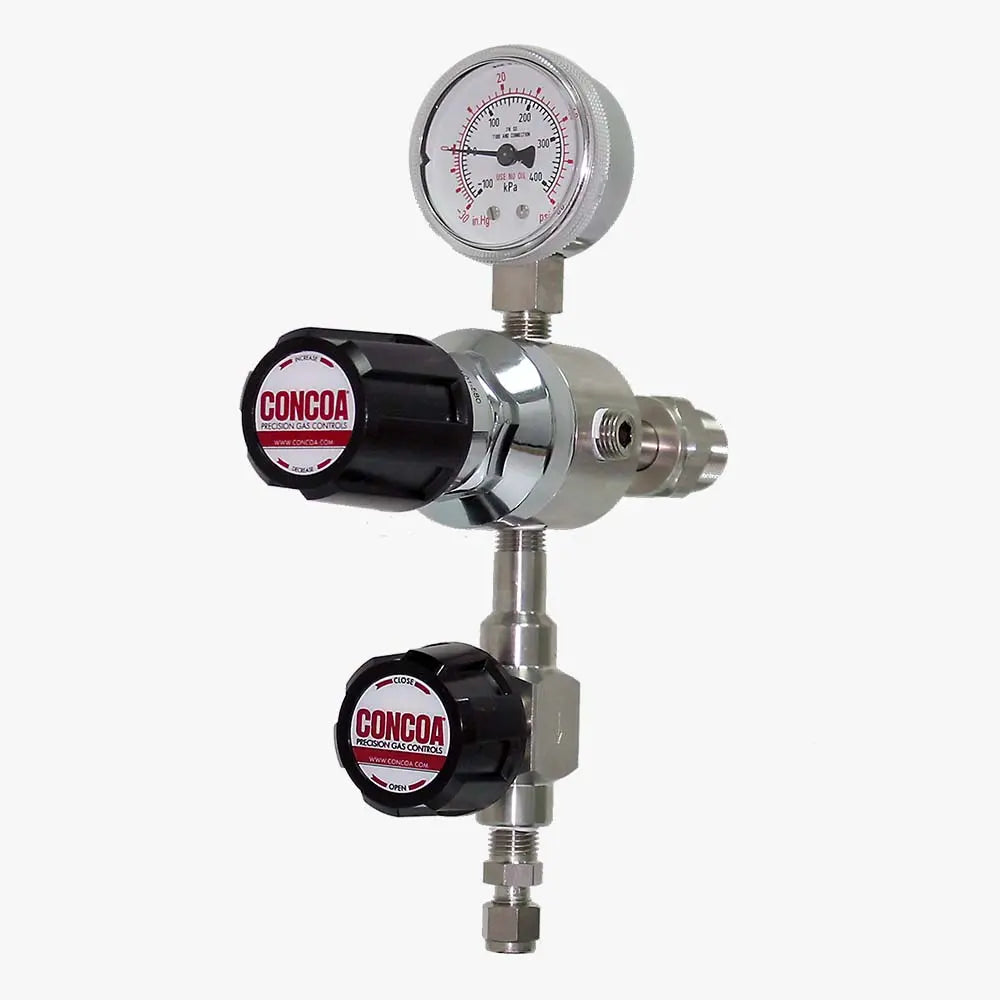

CONCOA 327 Series | Rear Entry Stainless Line Regulator | 316L Stainless Body, Rear Entry
Part Number : CONCOA-327-SERIES-REGULATOR
The CONCOA 327 Series is a 316L stainless steel line regulator for secondary control of non-corrosive, liquefied or high purity gases up to grade 5.5. A rear entry inlet allows on-wall or in-wall piping, and the full cylinder pressure rating suits point-of-use duty. It is not for toxic or highly corrosive gases. The 327 Series has no single part number: outlet pressure range, gauges, connections and options are chosen when the ordering code is built.
- Rear entry inlet for on-wall or in-wall piping
- Rear panel mounting simplifies installation
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR)
- Body: 316L stainless steel barstock; bonnet: chrome-plated, die-cast zinc
- Diaphragm: 316L stainless steel; seat: PTFE
- Filter: 10-micron, 316 stainless steel mesh
- Helium leak integrity 1 x 10⁻⁸ scc/sec; Cv 0.1
For pricing, please contact our experts.
