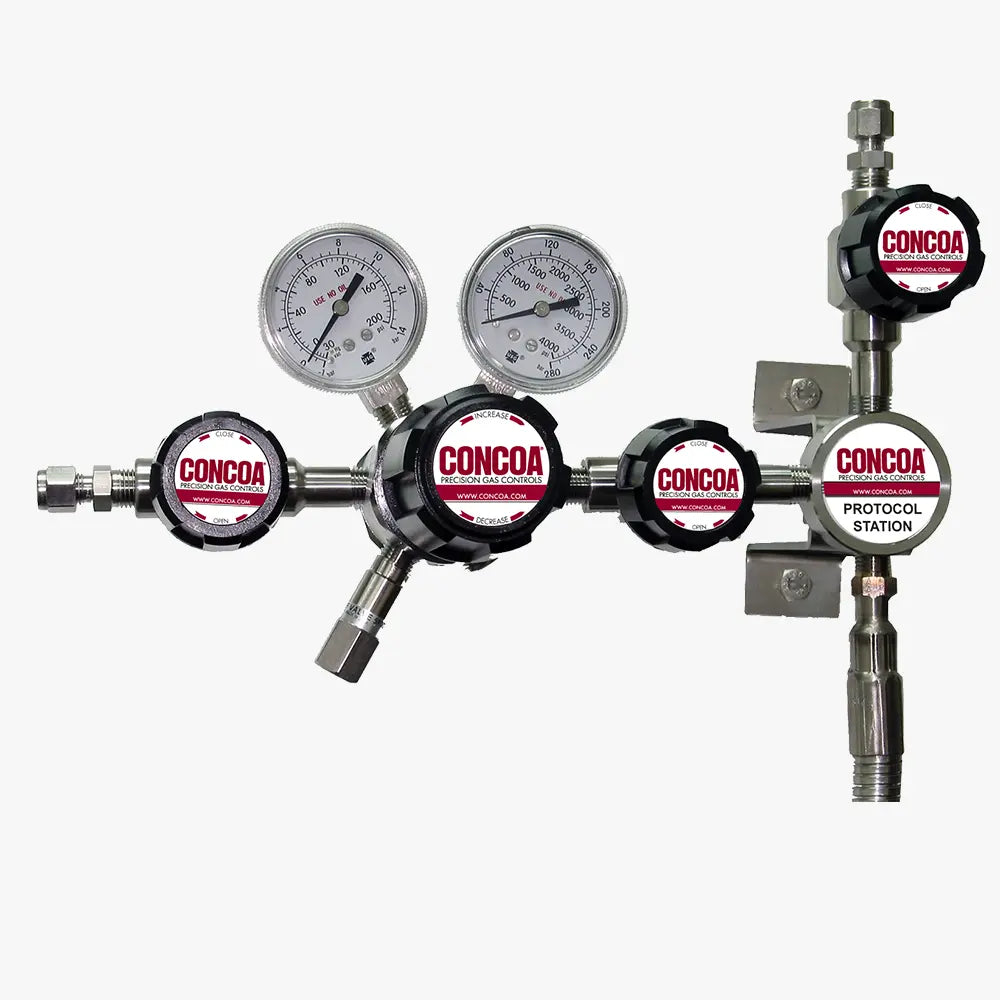

CONCOA 5290176-01-CON | 529 Series Protocol Purge Station | Dual Stage 316L Stainless
Part Number : 5290176-01-CON
CONCOA 5290176-01-CON is a protocol station with built-in purge capability built for dual stage 316L stainless steel regulators, rated to a maximum inlet pressure of 3000 PSIG (210 BAR). Typical use for this 316L stainless steel unit is purging the hose and regulator inlet side on CONCOA regulator installations.
Key features
- Regulator isolation valve shuts off the regulator inlet while purging on the 3000 PSIG version.
- Factory installation on a regulator is ordered by adding "Q" after the regulator part number on this 316L stainless steel unit.
- Purge valve at the 12 o'clock position with a 1/4 in compression tube fitting so purge gas can be piped away safely on 5290176-01-CON.
For pricing, please contact our experts.
