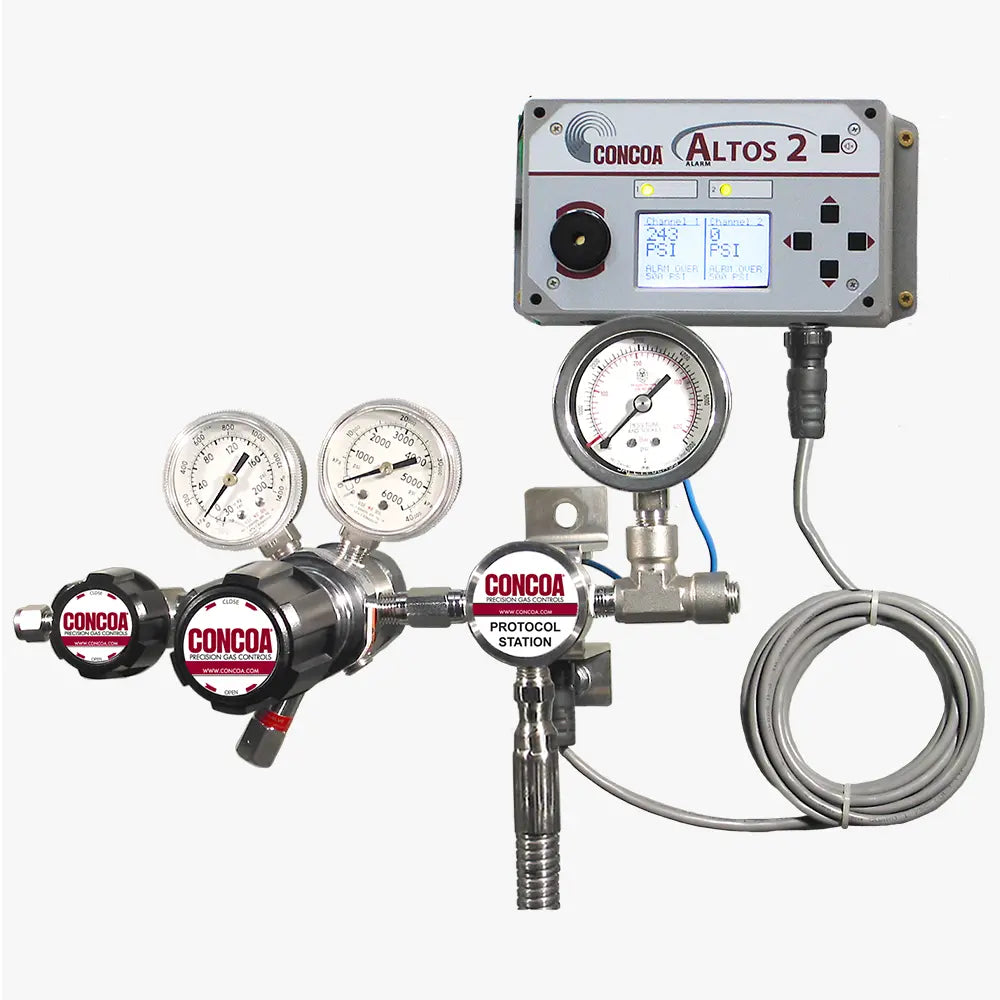

CONCOA 5290402-01-CON | 529 Series Protocol Alarm Station | SilcoNert 2000 Regulators, 600 PSIG
Part 5290402-01-CON adds remote low-cylinder warning to SilcoNert 2000 regulators at up to 600 PSIG (40 BAR). Its 600 PSIG pressure switch gauge is set in the field and works with an Altos 2 System Monitor on 110/220 VAC.
Key features
- Factory installation: add "B" after the regulator part number
- Intrinsic safety barrier required for flammable gas or hazardous areas
- Alarm point set in the field on the pressure switch gauge
- Altos 2 remote alarm gives audible and visible warnings
- Specifications
- Downloads
| Part Number | 5290402-01-CON |
| Brand | CONCOA |
| Series | 529 Series Protocol Alarm Station |
| Temperature Range | -40 °F to 140 °F (-40 °C to 60 °C) |
| Conformances | ANSI/ASME B40.1; CRN OA20418.5 |
| Max Inlet Pressure | 600 PSIG (40 BAR) |
| Regulator Material | SilcoNert 2000 |
| Power | 110/220 VAC |
| Check Valve Seal | FKM (Chloroprene for ammonia) |
| Intrinsic Safety Barrier | Required for flammable gas service or for use in hazardous environments |
| Bracket | 304 stainless steel |
| Weight (Single Stage) | 3.6 lbs (1.4 kg) |
| Weight (Dual Stage) | 4.0 lbs (1.8 kg) |
