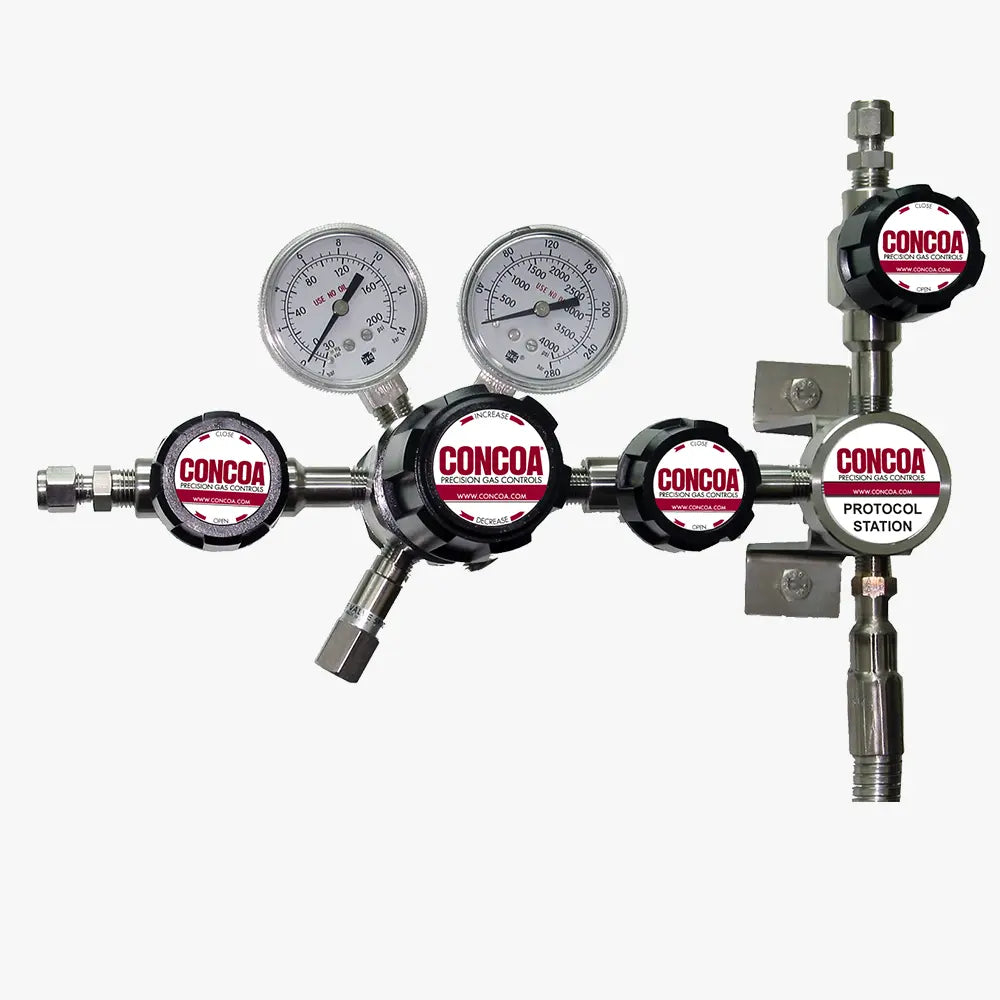

CONCOA 5290407-01-CON | 529 Series Protocol Purge Station | Single Stage SilcoNert 2000
Part number 5290407-01-CON from CONCOA's 529 Series Protocol Purge Station range is a protocol station with built-in purge capability matched to single stage SilcoNert 2000 regulators and rated to a maximum inlet pressure of 3000 PSIG (210 BAR). Choose this SilcoNert 2000 unit for purging the hose and regulator inlet side.
Key features
- Regulator isolation valve shuts off the regulator inlet while purging on this SilcoNert 2000 unit.
- Maximum inlet pressure of 3000 PSIG (210 BAR) on this model for single stage SilcoNert 2000 regulators.
- Purge valve at the 12 o'clock position with a 1/4 in compression tube fitting so purge gas can be piped away safely on the 3000 PSIG version.
- Specifications
- Downloads
| Part Number | 5290407-01-CON |
| Brand | CONCOA |
| Series | 529 Series Protocol Purge Station |
| Max Inlet Pressure | 3000 PSIG (210 BAR) |
| Temperature Range | -40 °F to 140 °F (-40 °C to 60 °C) |
| Description | Protocol Purge Station for Single Stage SilcoNert 2000 Regulators |
| Conformances | ANSI/ASME B40.1; CRN OA20418.5 |
| Regulator Material | SilcoNert 2000 |
| Check Valve Seal | FKM (Chloroprene for ammonia) |
| Bracket | 304 stainless steel |
| Protocol Tee | Brass; chrome-plated brass; 316L stainless steel barstock; or SilcoNert® 2000 |
| Regulator Type | Single Stage |
| Inlet Connections | 316L stainless steel; brass barstock; or SilcoNert 2000 |
