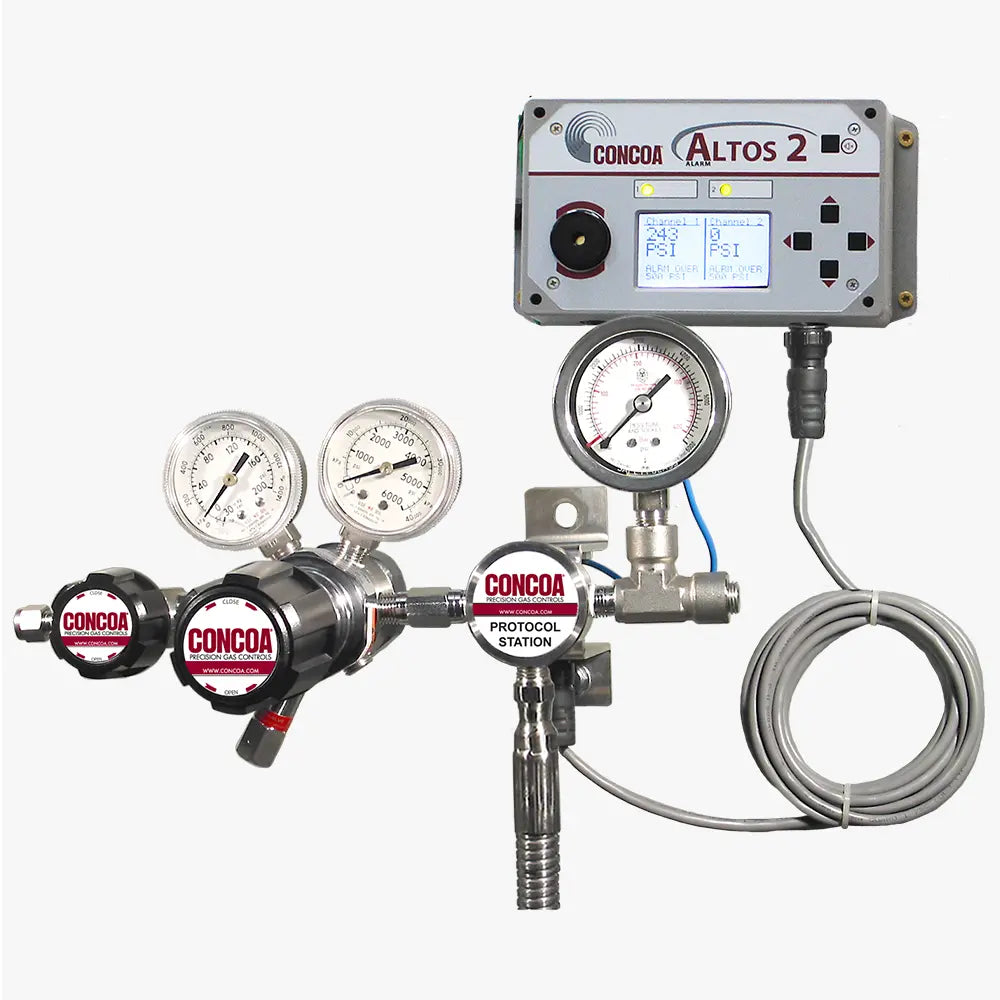

CONCOA 5291122-01-CON | 529 Series Protocol Alarm Station | Chrome-Plated Brass Regulators, 4500 PSIG
For chrome-plated brass regulators working up to 4500 PSIG (310 BAR), the CONCOA 5291122-01-CON protocol alarm station gives remote notice that a cylinder needs replacing, using a 110/220 VAC Altos 2 monitor.
Key features
- Audible and visible depletion warnings from the Altos 2
- 304 stainless steel bracket for flexible mounting
- Optional hose adds an inlet check valve against contamination
- Order factory-fitted by adding "B" to the regulator part number
- Specifications
- Downloads
| Part Number | 5291122-01-CON |
| Brand | CONCOA |
| Series | 529 Series Protocol Alarm Station |
| Regulator material | Chrome-plated brass |
| Max inlet pressure | 4500 PSIG (310 BAR) |
| Power | 110/220 VAC |
| Temperature range | -40°F to 140°F (-40°C to 60°C) |
| Intrinsic safety barrier | Required for flammable gas service or for use in hazardous environments |
| Check valve seal | FKM (Chloroprene for ammonia) |
| Bracket | 304 stainless steel |
| Weight (single stage) | 3.6 lbs (1.4 kg) |
| Weight (dual stage) | 4.0 lbs (1.8 kg) |
| Conformances | ANSI/ASME B40.1; CRN OA20418.5 |
