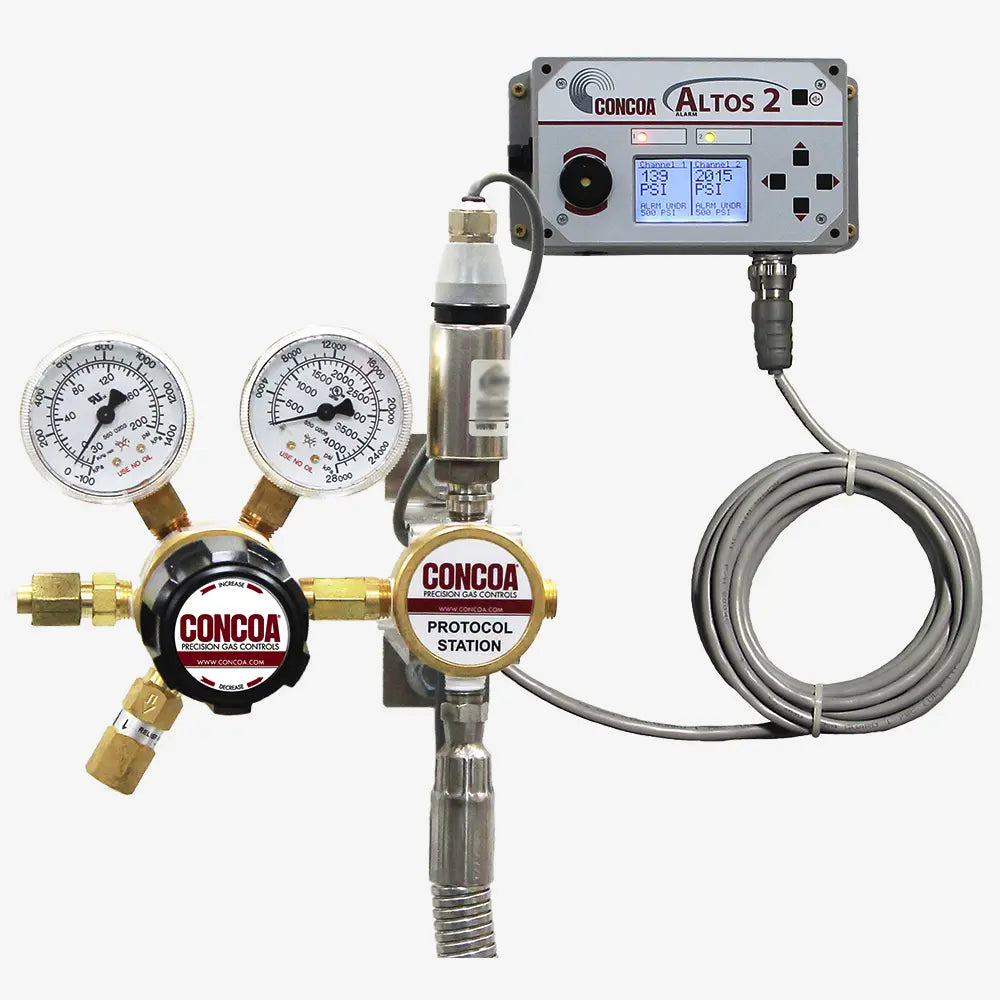

CONCOA 529TS50-01-CONA | 529 Series Protocol Monitor Station | 316L SS, Non-Hazardous, 6000 PSIG
Part 529TS50-01-CONA brings remote pressure monitoring to 316L stainless steel regulators at up to 6000 PSIG (415 BAR), for non-hazardous locations, with the depletion alarm point set on the Altos 2.
Key features
- Mounts on a 304 stainless steel bracket
- Integral check valve in the optional hose protects against contamination
- Operates from -40°F to 140°F (-40°C to 60°C)
- Factory-fitted option for inert gas: add "J" to the regulator part number
- Specifications
| Part Number | 529TS50-01-CONA |
| Brand | CONCOA |
| Series | 529 Series Protocol Monitor Station |
| Regulator material | 316L stainless steel |
| Environment | Non-hazardous |
| Max inlet pressure | 6000 PSIG (415 BAR) |
| Output | 4-20 mA transducer to Altos 2 |
| Temperature range | -40°F to 140°F (-40°C to 60°C) |
| Intrinsic safety barrier | Required for flammable gas service or for use in hazardous environments |
| Check valve seal | FKM (Chloroprene for ammonia) |
| Bracket | 304 stainless steel |
| Weight (single stage) | 3.6 lbs (1.4 kg) |
| Weight (dual stage) | 4.0 lbs (1.8 kg) |
| Conformances | ANSI/ASME B40.1; CRN OA20418.5 |
