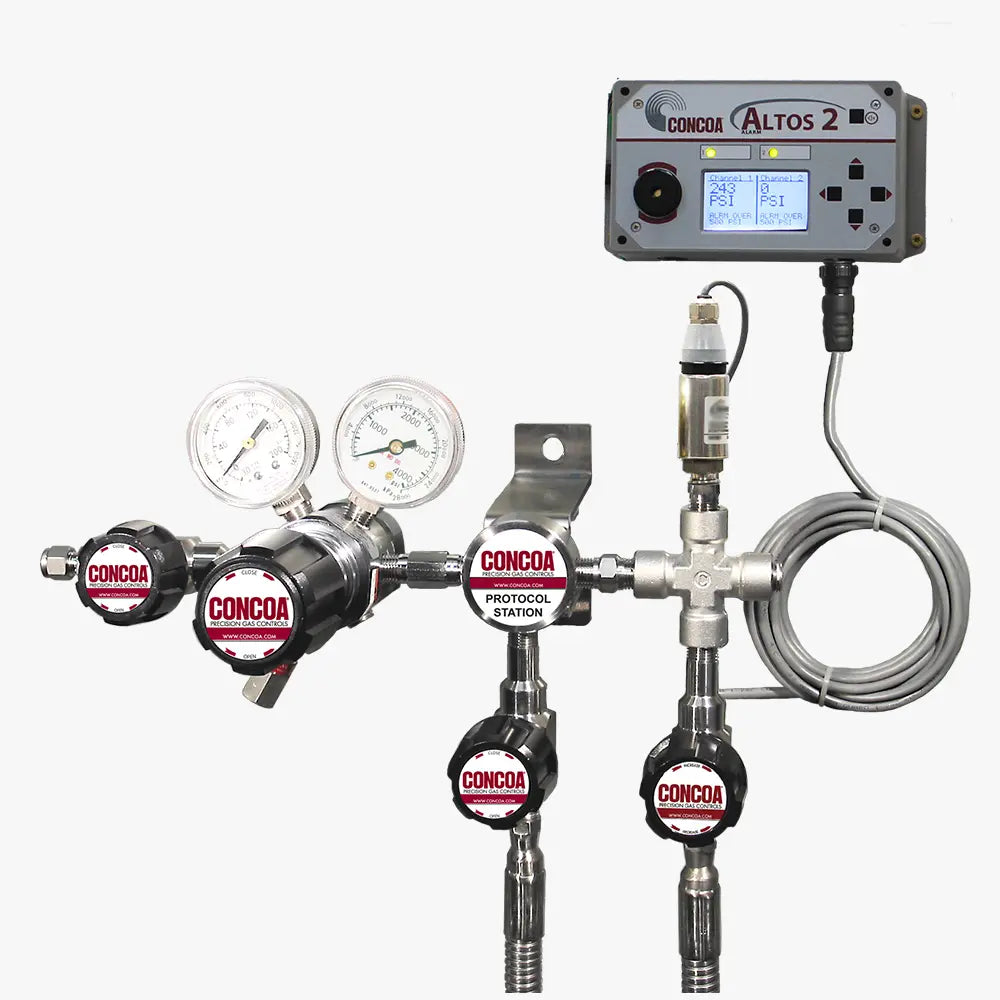

CONCOA 529TS53-01-CONA | 529 Series Protocol Switchover Monitor Station | 316L Stainless, 6000 PSIG
Designed for 316L stainless steel regulators, the CONCOA 529TS53-01-CONA is a protocol switchover monitor station with a single pressure transducer (for inert gases in non-hazardous environments), rated to a maximum inlet pressure of 6000 PSIG (415 BAR). Choose the 6000 PSIG version for remote monitoring of source pressure.
Key features
- Plugged port in the gas block facilitates purging on this 316L stainless steel unit.
- Check valve in the optional hose keeps contamination out at cylinder change on the 6000 PSIG version.
- Stainless steel bracket allows flexible mounting on 529TS53-01-CONA.
- 4-20 mA pressure transducer sends source pressure to an Altos 2 remote alarm on this model for 316L stainless steel regulators.
- Specifications
| Part Number | 529TS53-01-CONA |
| Brand | CONCOA |
| Series | 529 Series Protocol Switchover Monitor Station |
| Max Inlet Pressure | 6000 PSIG (415 BAR) |
| Temperature Range | -40 °F to 140 °F (-40 °C to 60 °C) |
| Description | Protocol Switchover Monitor Station for 316L Stainless Steel Regulators (non-hazardous) |
| Conformances | ANSI/ASME B40.1; CRN OA20418.5 |
| Regulator Material | 316L Stainless Steel |
| Inlet Connection | 316L stainless steel; brass barstock; or SilcoNert 2000 |
| Check Valve Seal | FKM (chloroprene for ammonia) |
| Bracket | 304 stainless steel |
| Protocol Tee | Brass; chrome-plated brass; 316L stainless steel barstock; or SilcoNert® 2000 |
| Hazard Rating | Non-hazardous |
