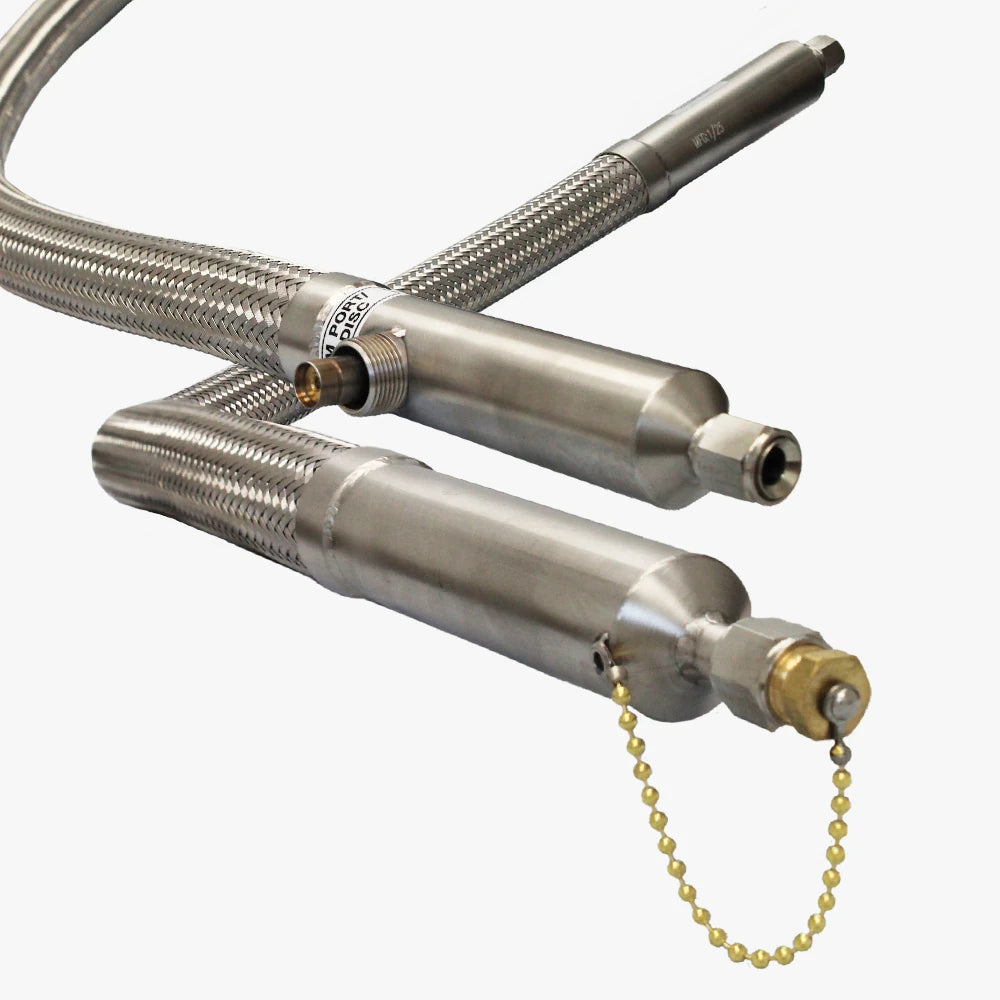

CONCOA 5512015 | 551 Series Semi-Flexible Vacuum-Jacketed Hose | 15 ft (4.5 m)
At 15 ft (4.5 m) long, the CONCOA 5512015 semi-flexible vacuum-jacketed hose links a liquid cylinder source to CryoWiz switchover or 57V header equipment. The vacuum jacket on the 15 ft hose limits heat gain so cryogens such as liquid nitrogen, argon, oxygen and carbon dioxide arrive with little loss.
Key features
- Swivel end connectors keep the 15 ft hose sealed leak-tight
- The 15 ft hose: 1/2 in braided stainless core, 1-1/4 in ID braided stainless jacket
- CGA 295 female flare connections on both ends of the 15 ft hose, with male plug and chain on the inlet
- Vacuum on the 15 ft hose can be restored through the SV-9 pump-out port
- Specifications
- Downloads
| Part Number | 5512015 |
| Brand | CONCOA |
| Series | 551 Series Semi-Flexible Vacuum-Jacketed Hose |
| Length | 15 ft (4.5 m) |
| Inner Core | 1/2 in braided stainless steel |
| Connections | CGA 295 female flare (both ends) |
| Helium Leak Integrity | 1x10⁻⁹ scc/sec |
| Max Pressure | 1200 PSIG (80 BAR) |
| Outer Jacket | 1-1/4 in ID, braided stainless steel |
| Pump-out Port | SV-9 |
| Inlet Closure | CGA 295 male plug and chain |
