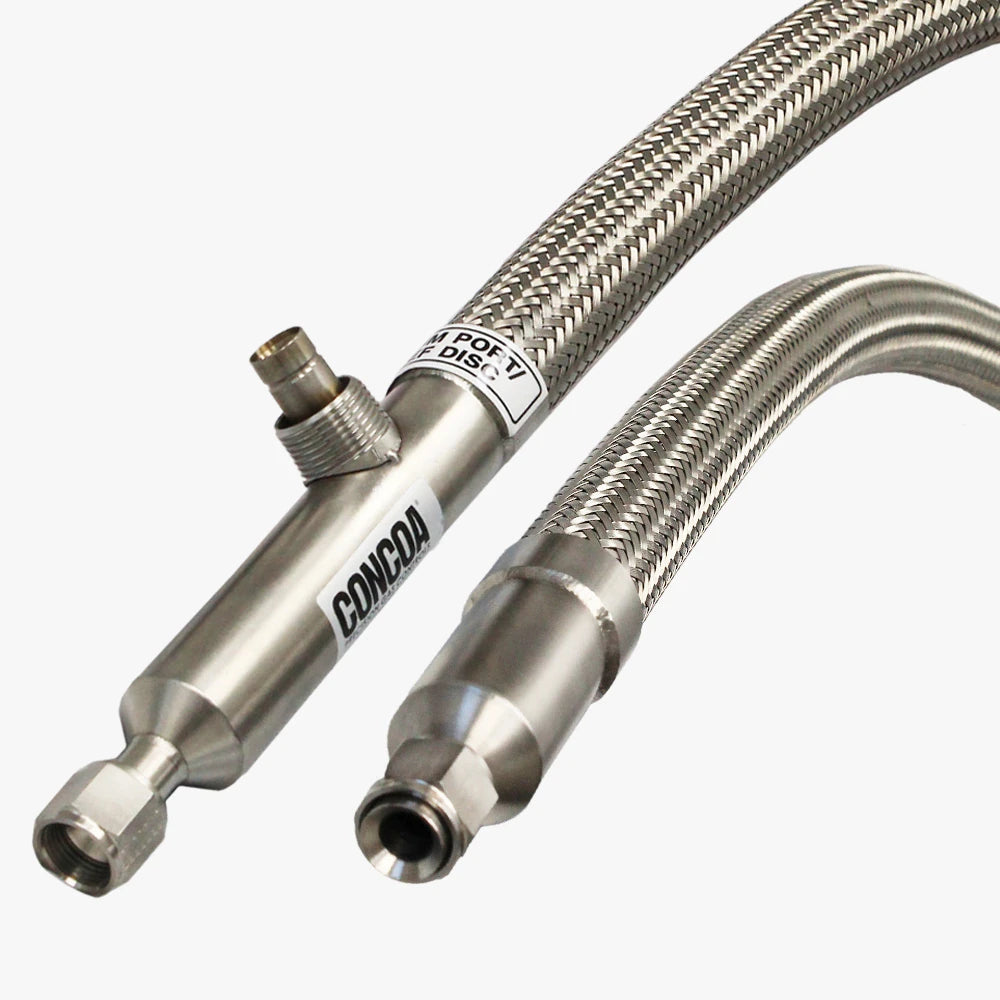

CONCOA 5512200-01-072 | 551 Series Ultra-Flexible Vacuum-Jacketed Hose | 6 ft (1.8 m)
CONCOA 5512200-01-072 is a 6 ft (1.8 m) 551 Series ultra-flexible, vacuum-jacketed cryogenic hose for running from the CryoWiz cryogenic switchover system to distribution points in the laboratory. Its lightweight construction lets the 6 ft hose take tight bends and simplifies routing.
Key features
- Vacuum on the 6 ft hose can be restored through the SV-9 pump-out port
- Helium leak integrity of 1x10⁻⁹ scc/sec and swivel end connectors on the 6 ft hose
- The 6 ft hose: 3/8 in unbraided stainless core in a 1.4 in OD braided 304 stainless jacket
- Max pressure 160 PSIG (11 BAR) for the 6 ft hose
- Specifications
- Downloads
| Part Number | 5512200-01-072 |
| Brand | CONCOA |
| Series | 551 Series Ultra-Flexible Vacuum-Jacketed Hose |
| Length | 6 ft (1.8 m) |
| Inner Core | 3/8 in unbraided stainless steel |
| Connections | CGA 295 female flare (both ends) |
| Helium Leak Integrity | 1x10⁻⁹ scc/sec |
| Max Pressure | 160 PSIG (11 BAR) |
| Outer Jacket | Braided 304 stainless steel |
| Pump-out Port | SV-9 |
| Outer Diameter | 1.4 in |
| Minimum Static Bend Radius | 5 in |
