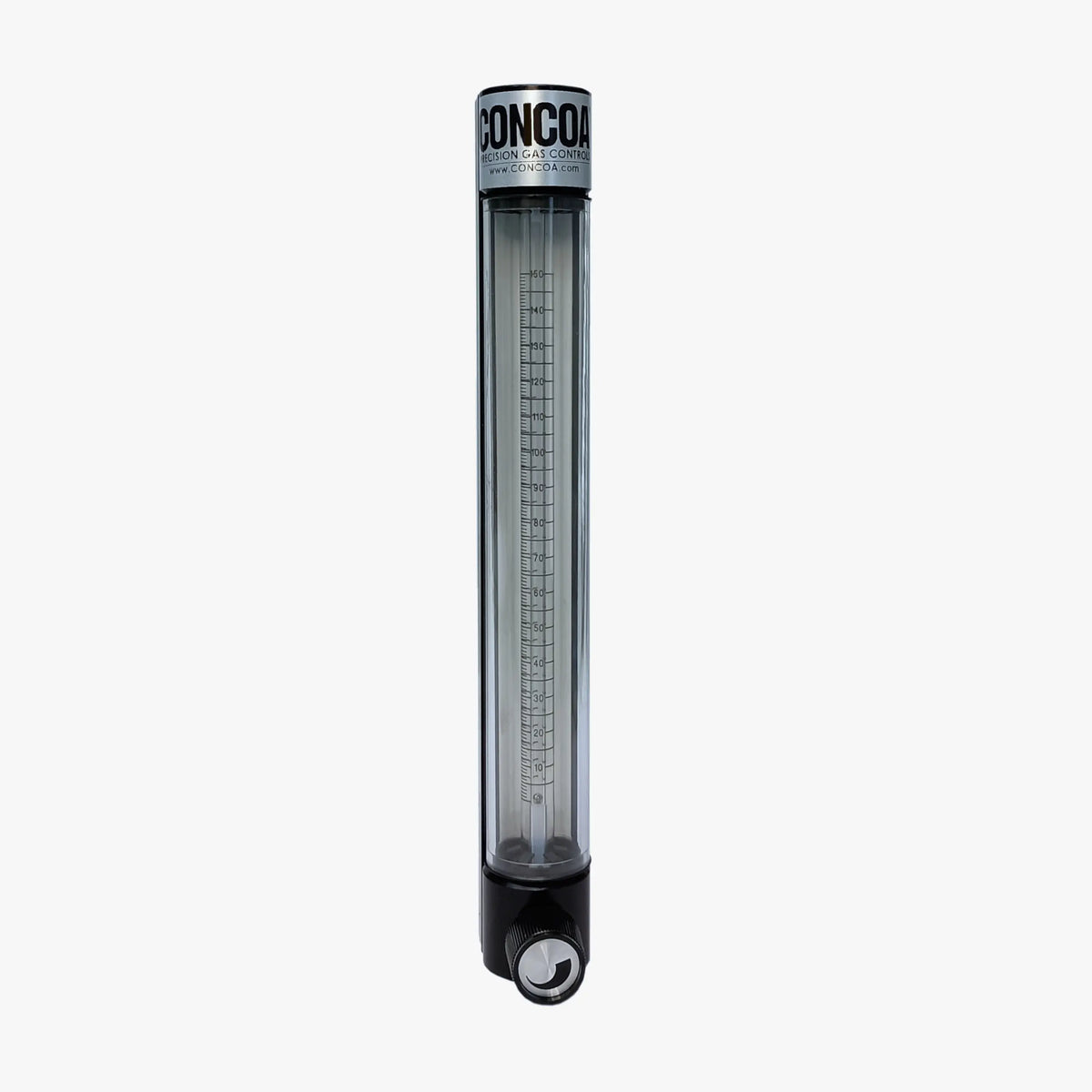

CONCOA 560 Series Flowmeter | Flowmeter | 200 PSIG, ±5% Full Scale
The CONCOA 560 Series flowmeter is a simple, economical precision flow instrument. Readings are taken from a uniformly calibrated millimetre scale and converted to actual flow with the calibration chart supplied with the flow tube. It serves chemical, petrochemical, biotechnology and analytical applications.
The 560 Series is configured to order, with flow tube, end connection material (brass or 316L stainless steel) and seal material (FKM, EPDM or Kalrez®) chosen when ordering.
Key features
- Rib-guided tube internals for stable readings
- Rotating magnifier lens improves reading resolution
- Threaded insert for panel mounting
- Field-changeable flow tube
- Accuracy ±5% full scale; repeatability 0.25% full scale
- Specifications
- Downloads
| Brand | CONCOA |
| Series | 560 Series Flowmeter |
| Accuracy | ± 5% full scale |
| Maximum Pressure | 200 PSIG (14 BAR) |
| Maximum Temperature | 250 °F (121 °C) |
| Repeatability | 0.25% full scale |
| Ordering Code | Configured to order |
| Flow Tube | Heavy-walled borosilicate glass |
| Front Shield | Polycarbonate |
| End Connections | Brass or 316L stainless steel |
| Seals | FKM; EPDM or Kalrez® optional |
