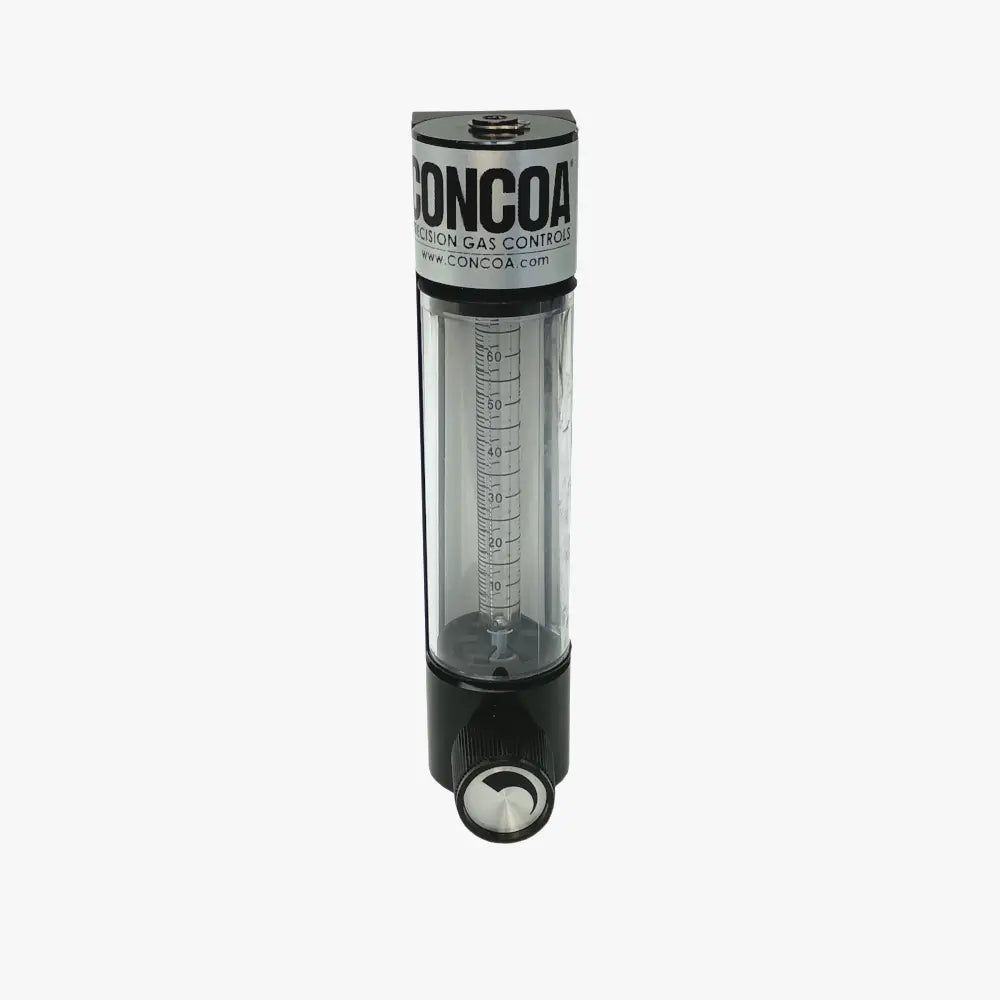

CONCOA 565 Series Flowmeter | Flowmeter | 2.6 in (65 mm) Scale, 200 PSIG
The CONCOA 565 Series flowmeter uses a 2.6 in (65 mm) scale favoured for industrial panel mounting and for mounting directly on a pressure regulator. Millimetre scale readings are converted to actual flow with the calibration chart supplied with each flow tube.
This series is configured to order: CONCOA offers many flow tube and float combinations, plus brass or 316L stainless steel end connections and FKM, EPDM or Kalrez® seals, chosen when ordering.
Key features
- Rib-guided tube internals for precise, stable readings
- Rotating magnifier lens for better resolution
- Field-changeable flow tube
- Heavy-walled borosilicate glass tube with polycarbonate front shield
- 200 PSIG (14 BAR) max; ±5% full scale accuracy
- Specifications
- Downloads
| Brand | CONCOA |
| Series | 565 Series Flowmeter |
| Accuracy | ± 5% full scale |
| Scale Length | 2.6 in (65 mm) |
| Maximum Pressure | 200 PSIG (14 BAR) |
| Maximum Temperature | 250 °F (121 °C) |
| Repeatability | 0.25% full scale |
| Ordering Code | Configured to order |
| Flow Tube | Heavy-walled borosilicate glass |
| Front Shield | Polycarbonate |
| End Connections | Brass or 316L stainless steel |
| Seals | FKM; EPDM or Kalrez® optional |
