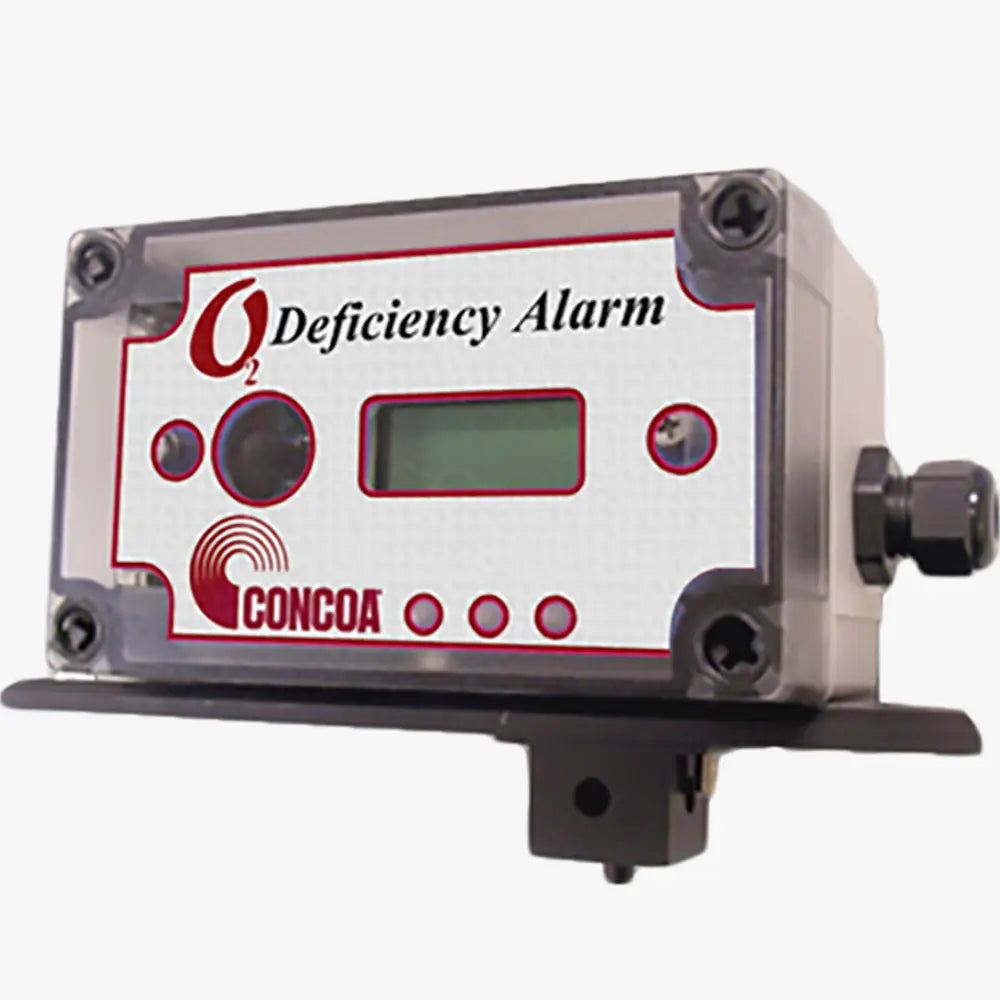

CONCOA 5803024 | 580 Series Oxygen Deficiency Monitor | Sample Draw O2 Monitor with Pump
CONCOA 5803024 is the sample draw version of the 580 Series oxygen deficiency monitor. A built-in pump draws air continuously from a remote point, so the monitor can be mounted away from the area being sampled. It has a polycarbonate enclosure with NEMA 2-encased electronics and weighs 4 lb (1.8 kg).
- Sampling: Built-in pump, continuous remote sampling · Enclosure: Polycarbonate; electronics in NEMA 2 housing · Weight: 4 lb (1.8 kg)
- Two adjustable alarm setpoints and a fault relay
- Sensor life of 8-10 years; CE and UL/cUL
- Specifications
- Downloads
| Part Number | 5803024 |
| Brand | CONCOA |
| Series | 580 Series Oxygen Deficiency Monitor |
| Weight | 4 lb (1.8 kg) |
| Accuracy | ±1% of full range |
| Enclosure | Polycarbonate; electronics in NEMA 2 housing |
| Conformances | CE, UL/cUL |
| Alarm | Built-in 90 dB horn |
| Gas Detected | Oxygen |
| Sensor | Zirconium oxide, 8-10 year life |
| Range | 0-25% |
| Sampling | Built-in pump, continuous remote sampling |
| Power Requirement | 24 VDC |
