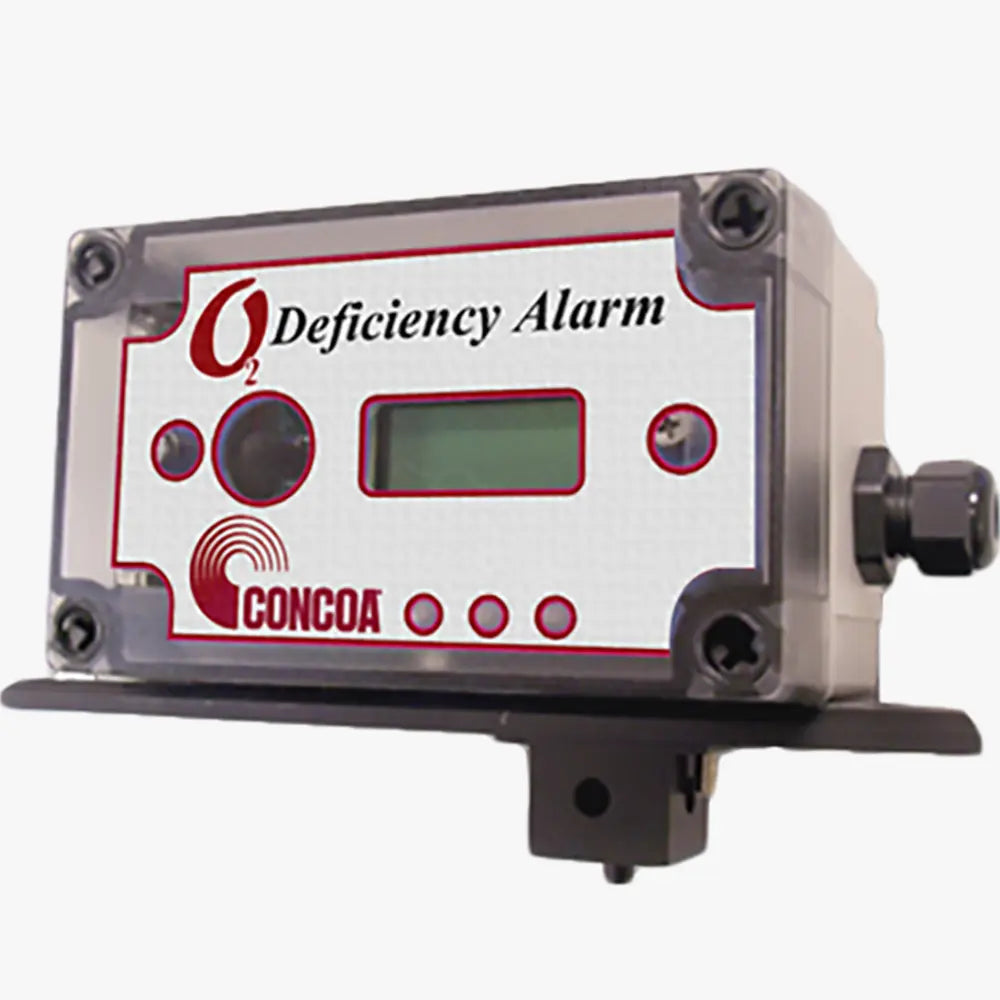

CONCOA 5803025 | 580 Series Oxygen Deficiency Monitor | Explosion Proof O2 Monitor
For hazardous areas, the CONCOA 5803025 oxygen deficiency monitor comes in an explosion-proof enclosure rated NEC Class 1, Div 1, Groups B, C and D. The unit weighs 12 lb (5.5 kg) and provides the same continuous oxygen monitoring as the standard 580 Series model.
- Enclosure: Explosion-proof, NEC Class 1 Div 1, Groups B, C, D · Weight: 12 lb (5.5 kg)
- Built-in 90 dB horn, non-latching
- Dual user-settable alarm relays plus one fault relay
- Specifications
- Downloads
| Part Number | 5803025 |
| Brand | CONCOA |
| Series | 580 Series Oxygen Deficiency Monitor |
| Weight | 12 lb (5.5 kg) |
| Accuracy | ±1% of full range |
| Enclosure | Explosion-proof, NEC Class 1 Div 1, Groups B, C, D |
| Conformances | CE, UL/cUL |
| Alarm | Built-in 90 dB horn |
| Gas Detected | Oxygen |
| Sensor | Zirconium oxide, 8-10 year life |
| Range | 0-25% |
| Power Requirement | 24 VDC |
