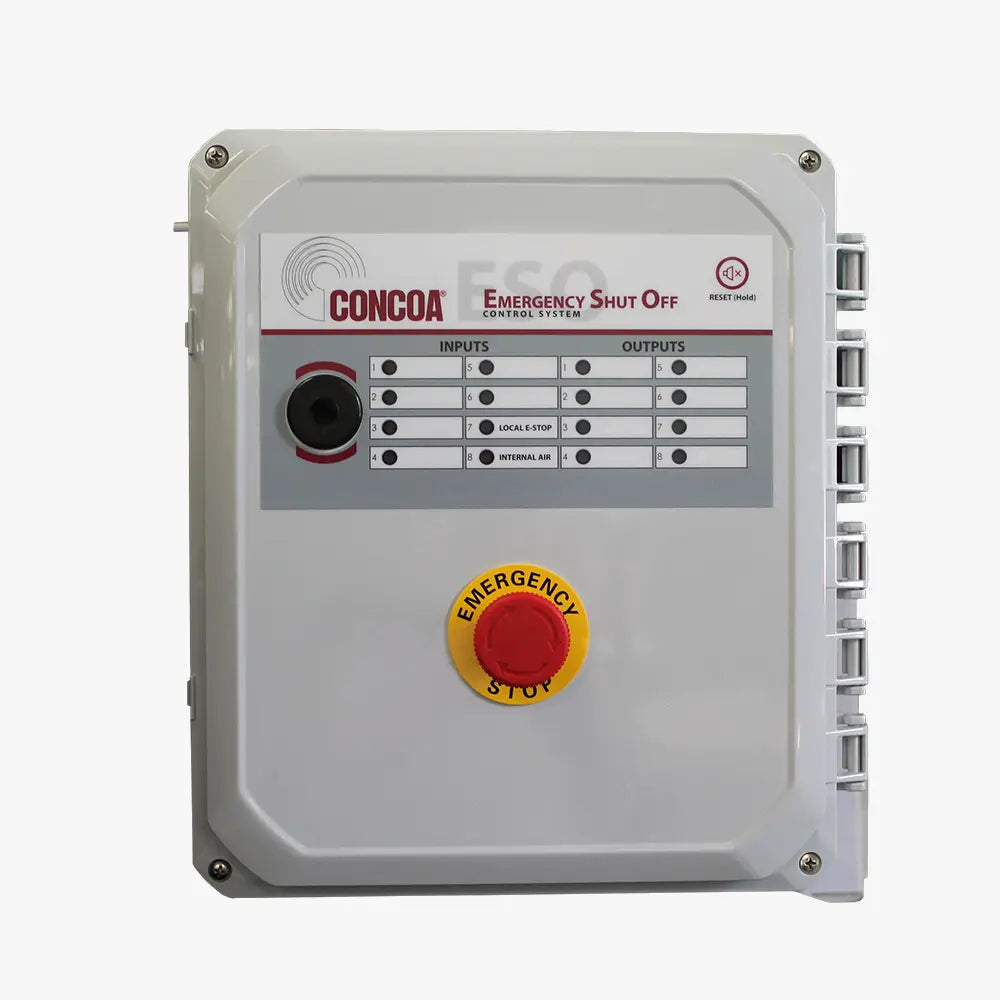

CONCOA 5851008-01-002 | 585 Series Emergency Shut-Off Controller | Custom Factory Configuration
Part 5851008-01-002 is the CONCOA 585 Series emergency shut-off controller supplied with a custom factory configuration for a specific application. Like the standard model, it can shut down up to eight gas sources based on inputs from up to six monitoring devices.
- Onboard web and mail server for remote status and alerts
- Eight pneumatic valve outputs driven by six configurable inputs
- UV-rated UL94 V-0 polycarbonate enclosure
- Specifications
- Downloads
| Part Number | 5851008-01-002 |
| Brand | CONCOA |
| Series | 585 Series Emergency Shut-Off Controller |
| Description | ESO controller, custom factory configuration |
| Pneumatic outputs | 8 x 1/8 in FNPT |
| Relay inputs | 6 NO/NC, plus E-stop and air pressure switch |
| Relay outputs | 9 (1 master, 8 NO/NC) |
| Relay contact rating | 0.5 A @ 24 VDC max |
| Audible alarm | 93 dB |
| Power input | 90-264 VAC external supply |
| Enclosure | UL94 V-0 polycarbonate |
