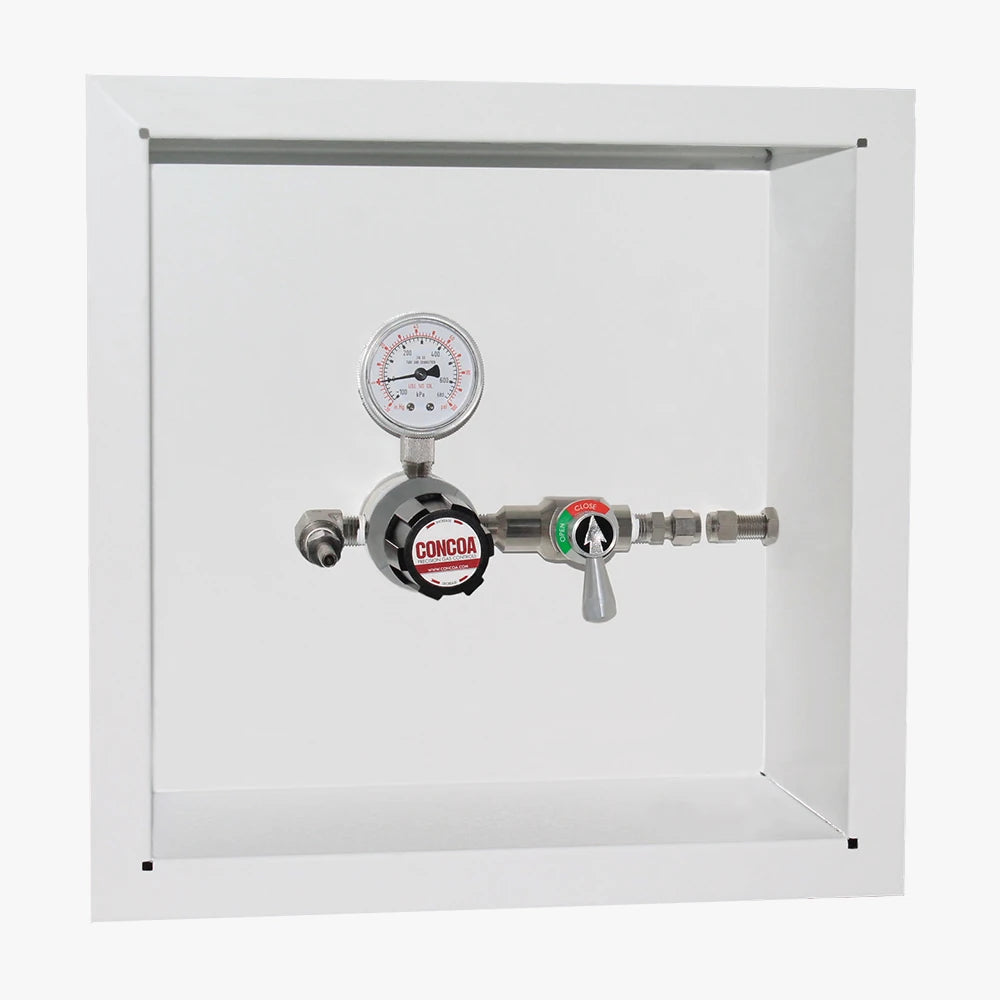

CONCOA 5E Series | Recessed Wall and Ceiling Enclosure | Point-of-Use, 3000 PSIG, Steel
Part Number : CONCOA-5E-SERIES-RECESSED-WALL-AND-CEILING-ENCLOSURE
CONCOA 5E Series recessed wall and ceiling enclosures provide point-of-use pressure and flow control for life science, IVF and analytical applications. They are configured to order, with bore-through bulkhead fittings for inlets inside the enclosure or standard bulkheads for inlets within the wall or ceiling; custom enclosures, equipment and colours can be requested. Every unit is functionally tested and spectrometrically leak checked.
- 300 Series style regulators with CAPSULE seat design
- Quarter-turn diaphragm valve for flow control and positive shut-off
- Bodies in 316L stainless steel or chrome-plated brass barstock
- Max inlet (bare body) 3000 PSIG (210 BAR); Cv 0.1
- Helium leak integrity 1 x 10-8 scc/sec
- 18 AWG steel enclosure, powder coated white; optional flange
For pricing, please contact our experts.
