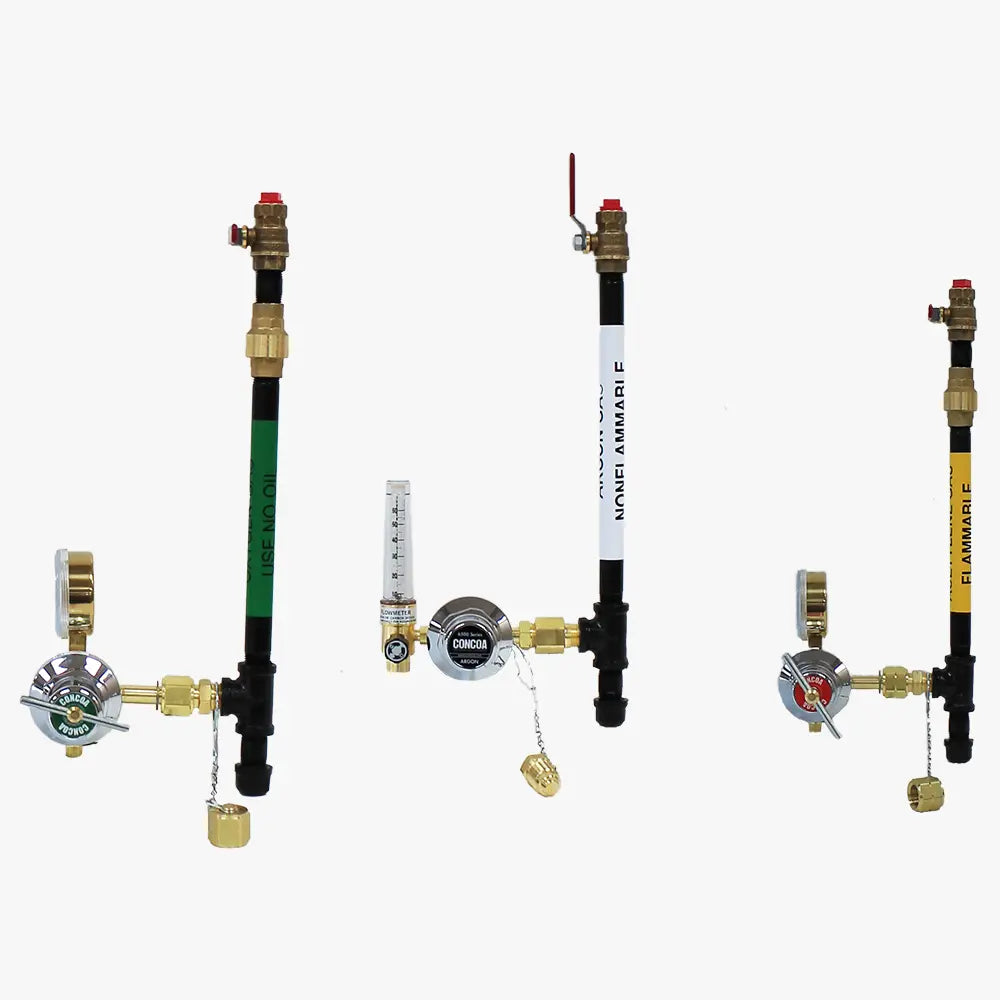

CONCOA 8016594-01-1 | Station Drop | Inerts, Dual Flowmeter Regulator
Part Number : 8016594-01-1
Station drop 8016594-01-1 from CONCOA serves inerts (nitrogen/helium/argon) lines and comes fitted with dual flowmeter regulator 8066594-01-1 with a forged brass body and PTFE seat, with outlet connection 5/8 in -18 (B) RH Int. It provides a point-of-use outlet for inerts (nitrogen/helium/argon) (8016594-01-1) on metal fabrication pipelines.
- Moisture is drained from the line through the 8016594-01-1 drip leg
- Maximum inlet 200 PSIG (13.8 BAR), temperature -40°F to 140°F, on 8016594-01-1
- Black steel drop tube with brass barstock isolation valve (8016594-01-1)
- 8016594-01-1 conforms to CGA E-3 and NFPA 51, with CGA G-4.1 cleanliness
For pricing, please contact our experts.
