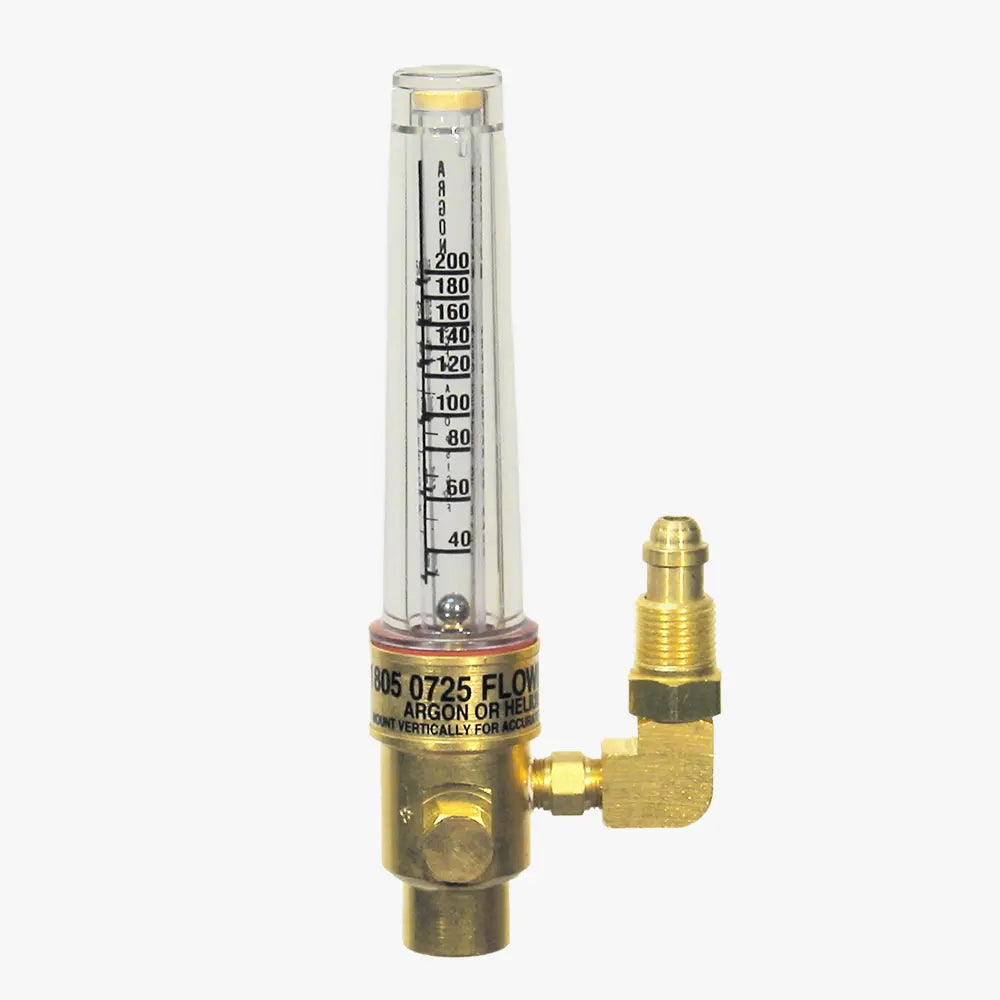

CONCOA 8050725-01-1 | 700 Series Industrial Flowmeter | Argon/Helium Gas Saver, Elbow Model
CONCOA 8050725-01-1 is a 700 Series Argon/Helium Gas Saver flowmeter with a 5/8 in -18 (B) RH Ext inlet, built as an elbow model. Its scale reads 10-60 SCFH Ar/30-200 SCFH He (no pressure compensation). As the gas-saver version without pressure compensation, it works with an adjustable regulator so pressure can be set while watching the flow scale.
Key features
- 5-10 micron sintered bronze inlet filter and 75 PSIG (5 BAR) maximum inlet
- Resettable relief mechanism to cut maintenance; brass body
- Service temperature of -40°F to 140°F (-40°C to 60°C), plus chloroprene seals
- Specifications
- Downloads
| Part Number | 8050725-01-1 |
| Brand | CONCOA |
| Series | 700 Series Industrial Flowmeter |
| Flow Range | 10-60 SCFH Ar/30-200 SCFH He (no pressure compensation) |
| Body | Brass |
| Inlet Connection | 5/8 in -18 (B) RH Ext (elbow model) |
| Outlet Connection | 5/8 in -18 (B) RH Int |
| Conformances | CRN OF15806.52 |
| Temperature Range | -40 °F to 140 °F (-40 °C to 60 °C) |
| Description | Argon/Helium Gas Saver Flowmeter |
| Max Inlet Pressure | 75 PSIG (5 BAR) |
| Inlet Filter | 5-10 micron sintered bronze |
| Seals | Chloroprene |
