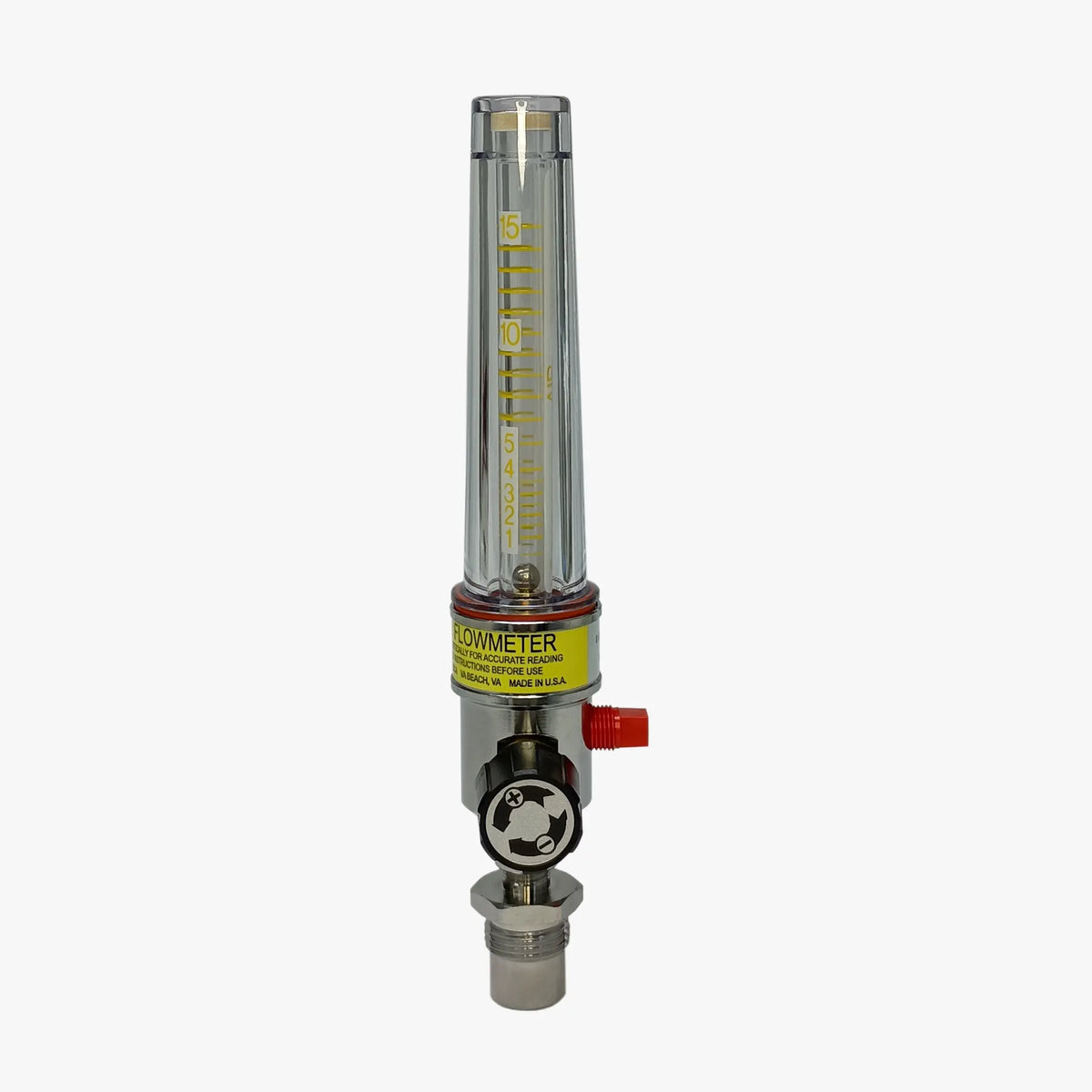

CONCOA 8052165-01-1 | 2000 Series Medical Air Flowmeter | 1-15 LPM, 1/8 in FNPT Inlet, DISS 1240
The CONCOA 8052165-01-1 flowmeter measures medical air flow over 1-15 LPM (at 50 PSIG) and connects through a 1/8 in FNPT inlet and DISS 1240 outlet. 8052165-01-1 is aimed at clinical use that calls for close monitoring of medical air flow. The 1-15 LPM scale on 8052165-01-1 is read with the supply at 50 PSIG.
- A clear polycarbonate flow tube and FDA listing with CRN OF15806.5
- A design intended only for medical air and 50 PSIG (3.5 BAR) compensation for accurate readings
- Over-pressure relief that can be reset and a chrome-plated brass body
- Specifications
- Downloads
| Part Number | 8052165-01-1 |
| Brand | CONCOA |
| Series | Medical Air Flowmeter |
| Body | Chrome-plated brass |
| Inlet Connection | 1/8 in FNPT |
| Outlet Connection | DISS 1240 |
| Flowtube | polycarbonate |
| Conformances | FDA-listed; CRN OF15806.5 |
| Flow Range (@ 50 PSIG) | 1-15 LPM |
| Compensation | 50 PSIG (3.5 BAR) |
