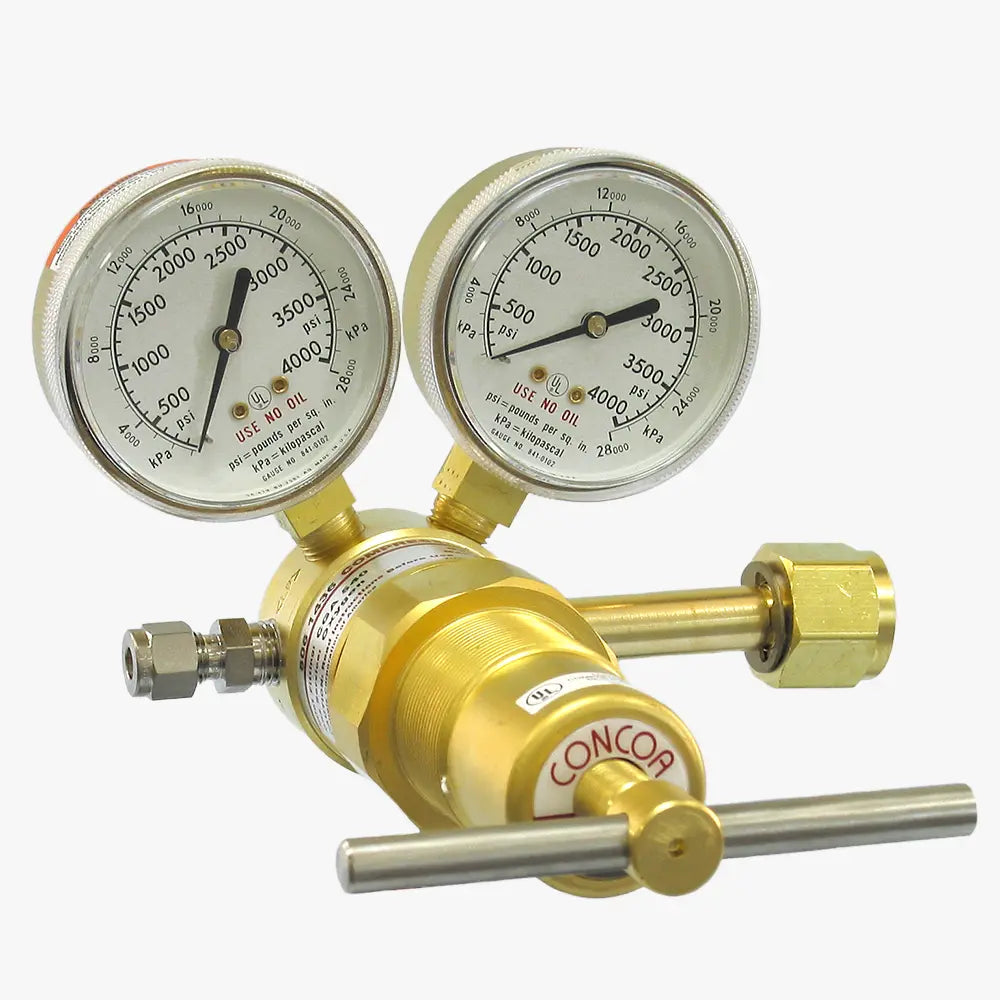

CONCOA 8061421-01-1 | 1400 Series Ultra-High Pressure Regulator | Hydrogen/Methane, CGA 695, 1500 PSIG Outlet
Part Number : 8061421-01-1
CONCOA 8061421-01-1 is a 1400 Series ultra-high pressure regulator configured for hydrogen and methane service, with a CGA 695 inlet rated to 3000 PSIG (210 BAR) and delivery up to 1500 PSIG (100 BAR). Its PCTFE seat and 0-4000 PSIG and 0-4000 PSIG gauges are matched to the 1500 PSIG delivery limit of this CGA 695 model.
- 25-micron sintered bronze filter; Cv 0.15
- Built for non-corrosive gases and dead-end pressurised systems
- Conforms to ANSI/ASME B40.1 and CRN OH5216.5R2
- Brass barstock body, bonnet and piston
For pricing, please contact our experts.
